Precision Contrast Injection System for Veterinary CT and X-Ray Imaging

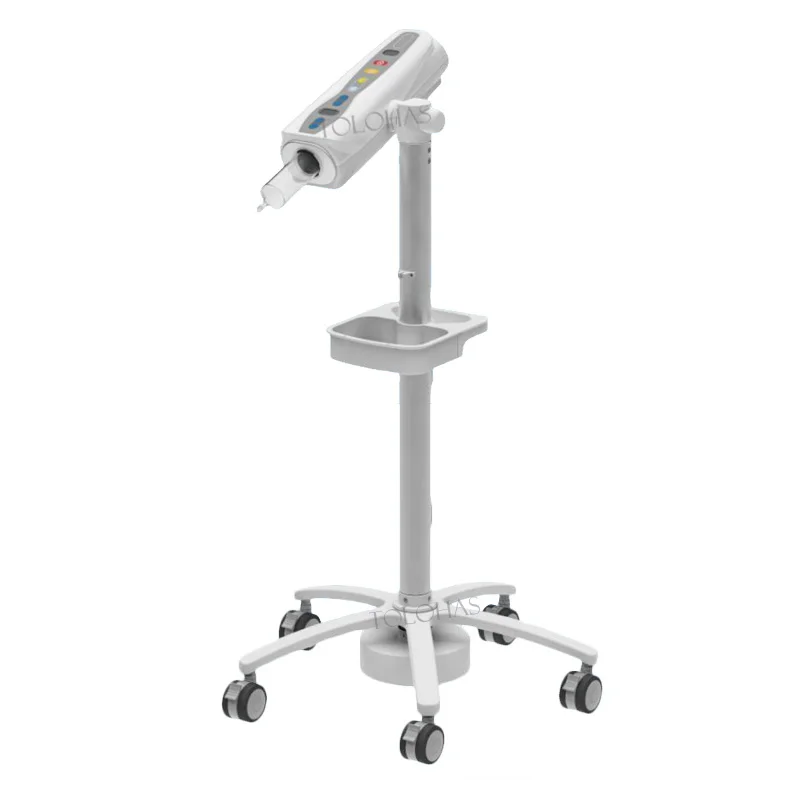

The Meubon Veterinary High-Pressure Contrast Media Injector is an advanced automatic injection system designed to deliver precise, controlled injections of iodinated contrast media during veterinary CT (Computed Tomography) and X-ray imaging procedures. Engineered for accuracy, safety, and reliability, this high-pressure injector enhances diagnostic imaging by providing consistent contrast delivery for superior image quality.

Designed for use with disposable high-pressure syringes, the injector delivers contrast agents through a catheter, ensuring the injection system itself does not come into direct contact with the patient. This design helps maintain a high standard of hygiene while supporting efficient workflow in veterinary hospitals, specialty imaging centers, universities, and research facilities.

P

Key Features

• Automatic high-pressure contrast media injector for veterinary CT imaging

• Compatible with iodinated contrast agents

• Intelligent contrast injection technology for precise delivery

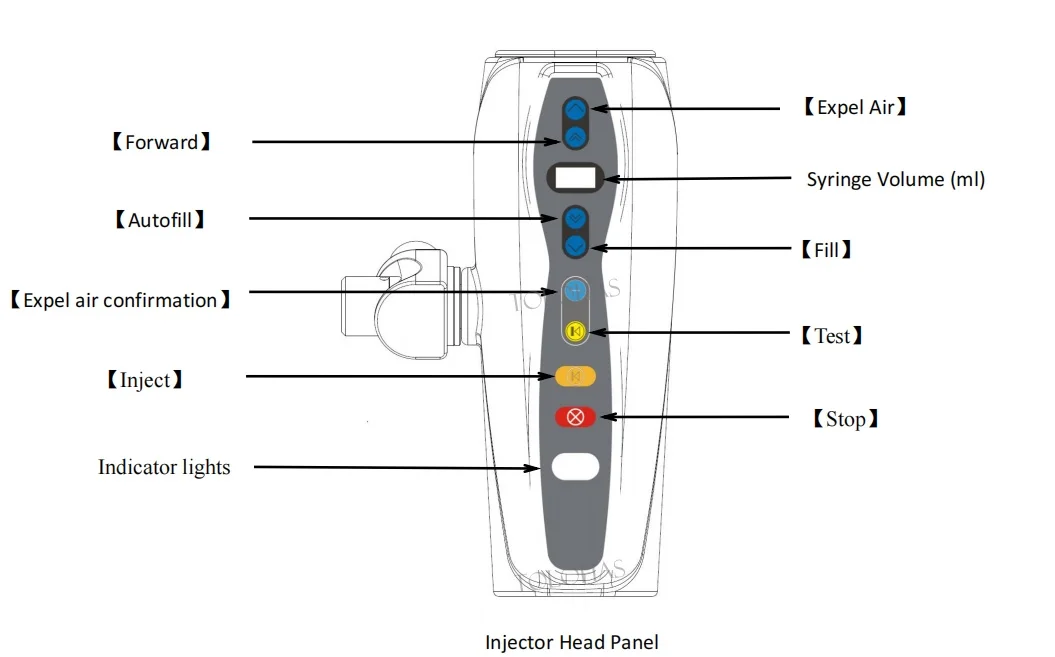

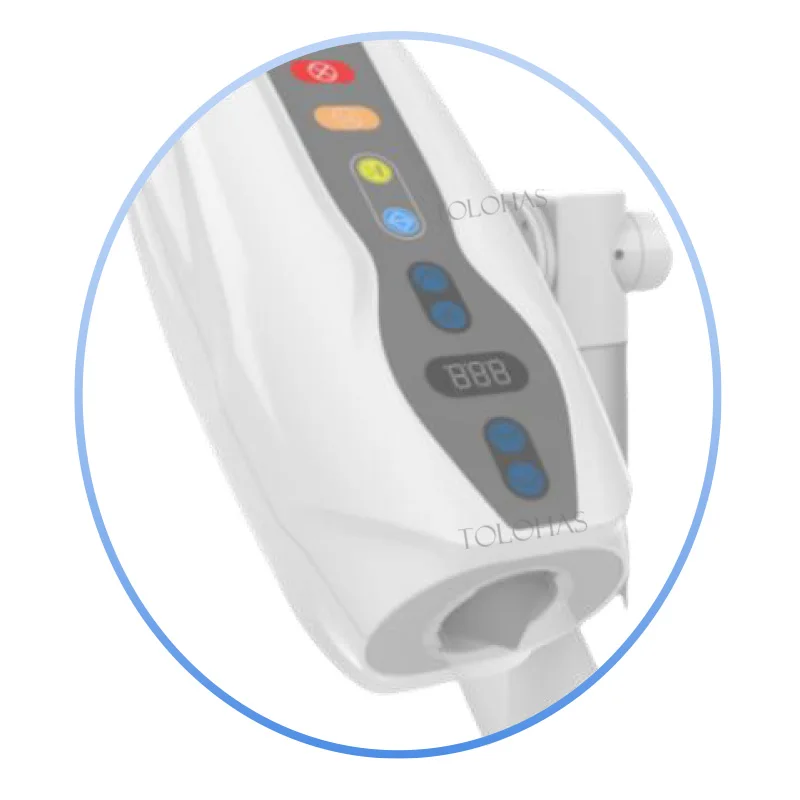

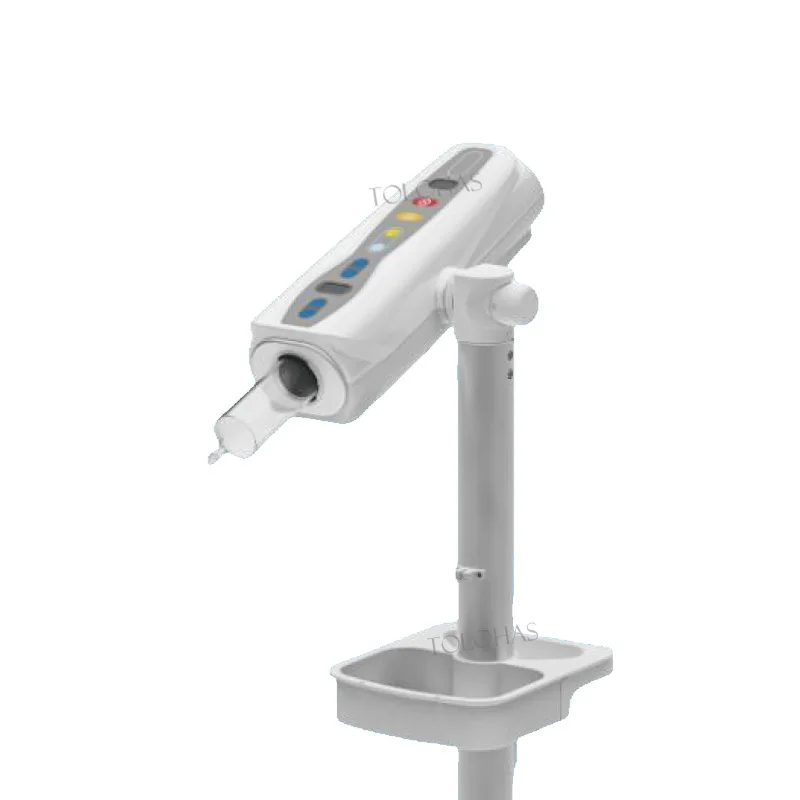

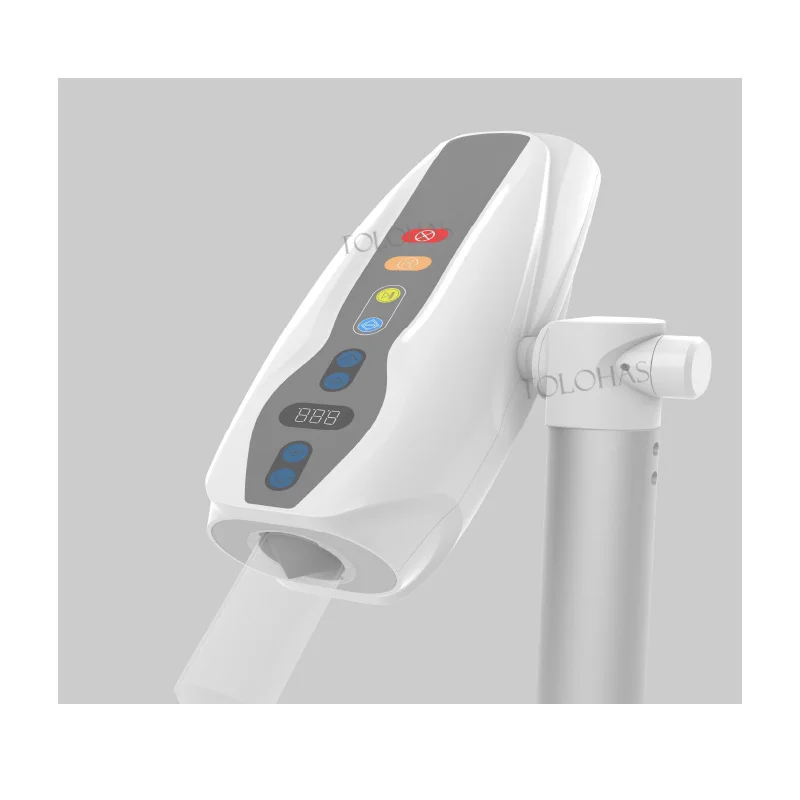

• High-performance injector head with advanced safety protection

• Accurate flow rate and pressure control

• Supports multi-phase injection protocols

• Large protocol storage capacity for quick procedure setup

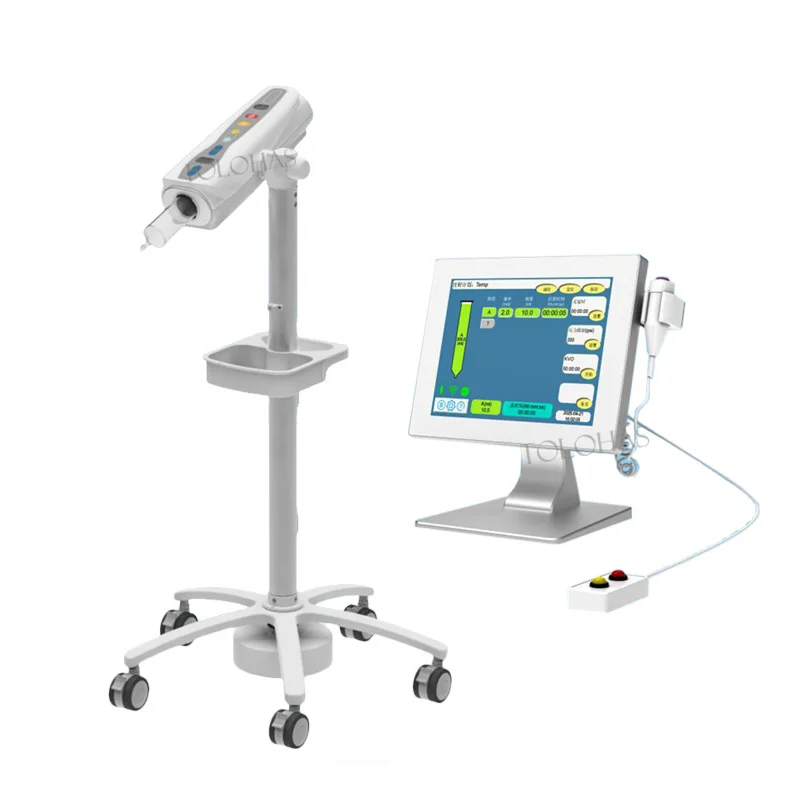

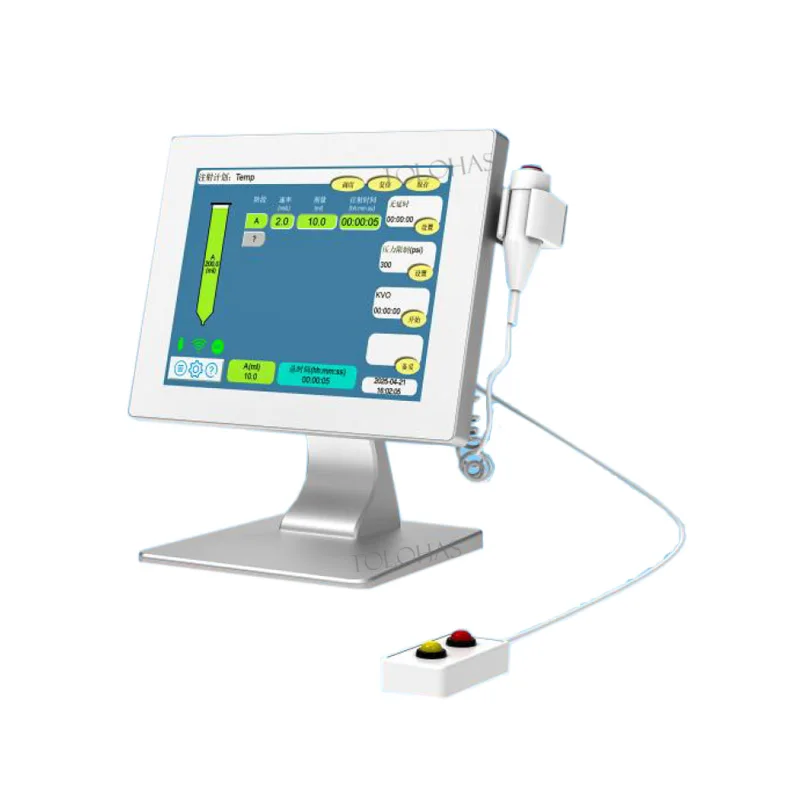

• User-friendly interface for efficient operation

• Designed for veterinary diagnostic imaging applications

• Reliable performance for routine and advanced imaging procedures

Applications

Ideal for use in:

• Veterinary hospitals

• Animal specialty clinics

• Veterinary diagnostic imaging centers

• University veterinary teaching hospitals

• Research laboratories

• Emergency and referral animal hospitals

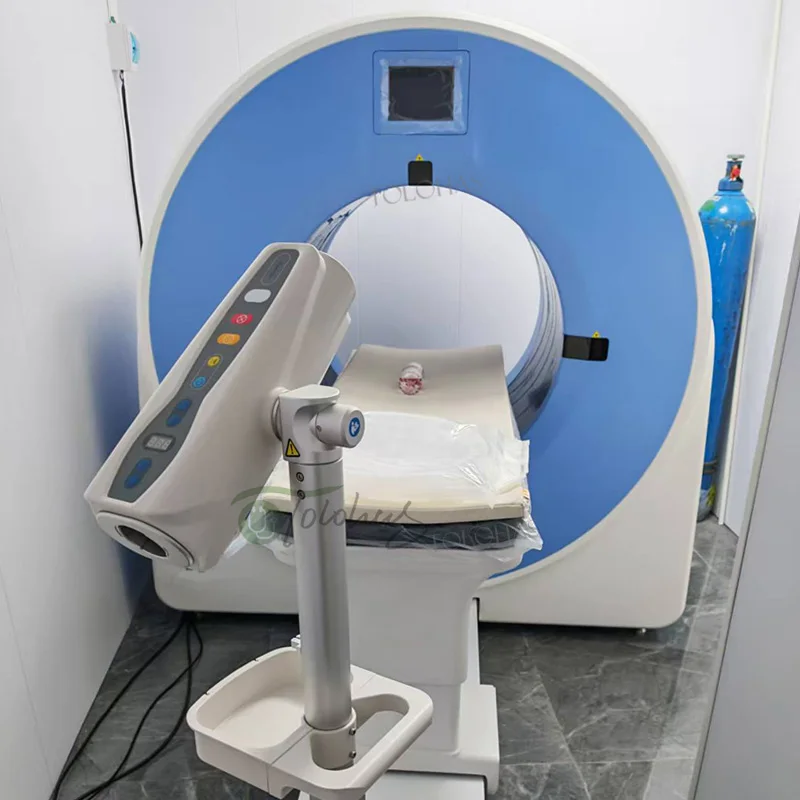

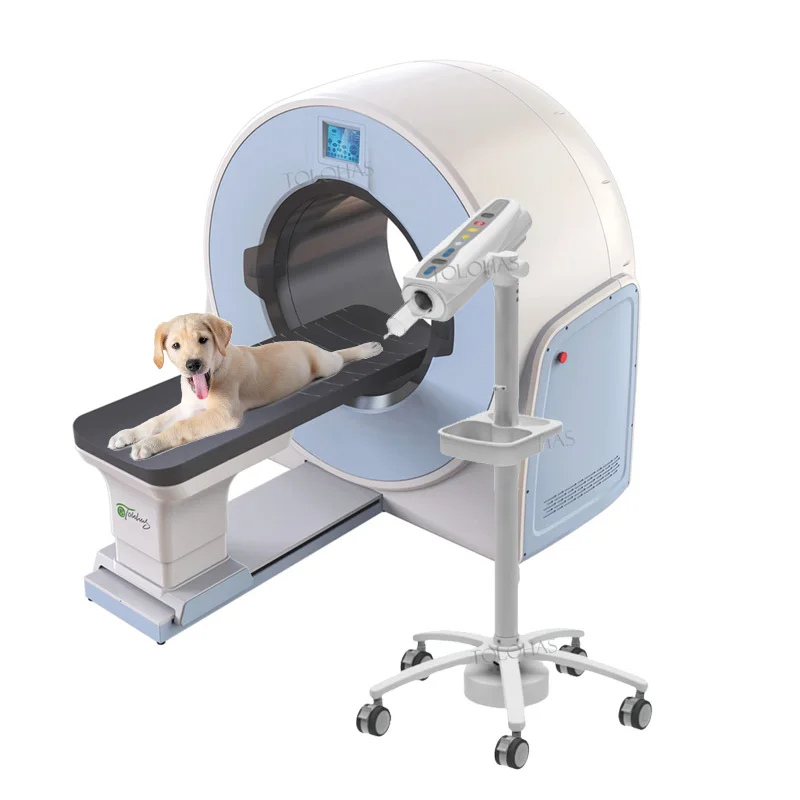

Suitable for CT examinations involving:

• Small animals

• Large animals

• Exotic animals

• Oncology imaging

• Cardiovascular imaging

• Neurological imaging

• Abdominal and thoracic imaging

Advanced Injection Performance

The Meubon Veterinary CT Contrast Injector delivers highly accurate contrast administration with adjustable flow rates, injection volumes, pressure limits, and programmable multi-phase injection sequences. The system supports consistent imaging protocols while helping improve diagnostic confidence.

Technical Specifications

Power Supply

• AC 100–220V

• 50/60 Hz

• 200 VA

Injection Performance

• Flow Rate: 0.1–10.0 mL/sec

• Syringe Capacity: 200 mL

• Injection Volume: 0.1–200 mL (0.1 mL increments)

• Pressure Limit: 10–350 psi (69–2415 kPa)

• Adjustable in 1 psi (1 kPa) increments

• Injection Delay: 0–3600 seconds

• Adjustable in 1-second increments

• Scan Delay: 0–3600 seconds

• Multi-Phase Injection: 1–8 programmable phases

• Protocol Storage: More than 1,000 saved injection protocols

Operating Environment

• Temperature: 5°C to 40°C

• Relative Humidity: ≤80%

• Atmospheric Pressure: 700–1060 hPa

Transportation & Storage Conditions

• Temperature: −20°C to +55°C

• Relative Humidity: ≤93%

• Atmospheric Pressure: 700–1060 hPa

Why Choose the Meubon Veterinary Contrast Injector?

The Meubon Veterinary High-Pressure Contrast Media Injector combines precision engineering with intelligent control technology to provide safe, repeatable, and efficient contrast media administration. Its advanced programmable features, reliable safety mechanisms, and robust construction make it an excellent choice for veterinary professionals seeking high-quality diagnostic imaging equipment.

Whether performing routine CT scans or advanced diagnostic studies, the Meubon injector helps deliver consistent contrast enhancement for clearer, more accurate veterinary imaging results.
