High Frequency Mobile c Arm X Ray Machine Medical c Arm Surgical X Ray Machine C-arm Analogue MWSLRCX34

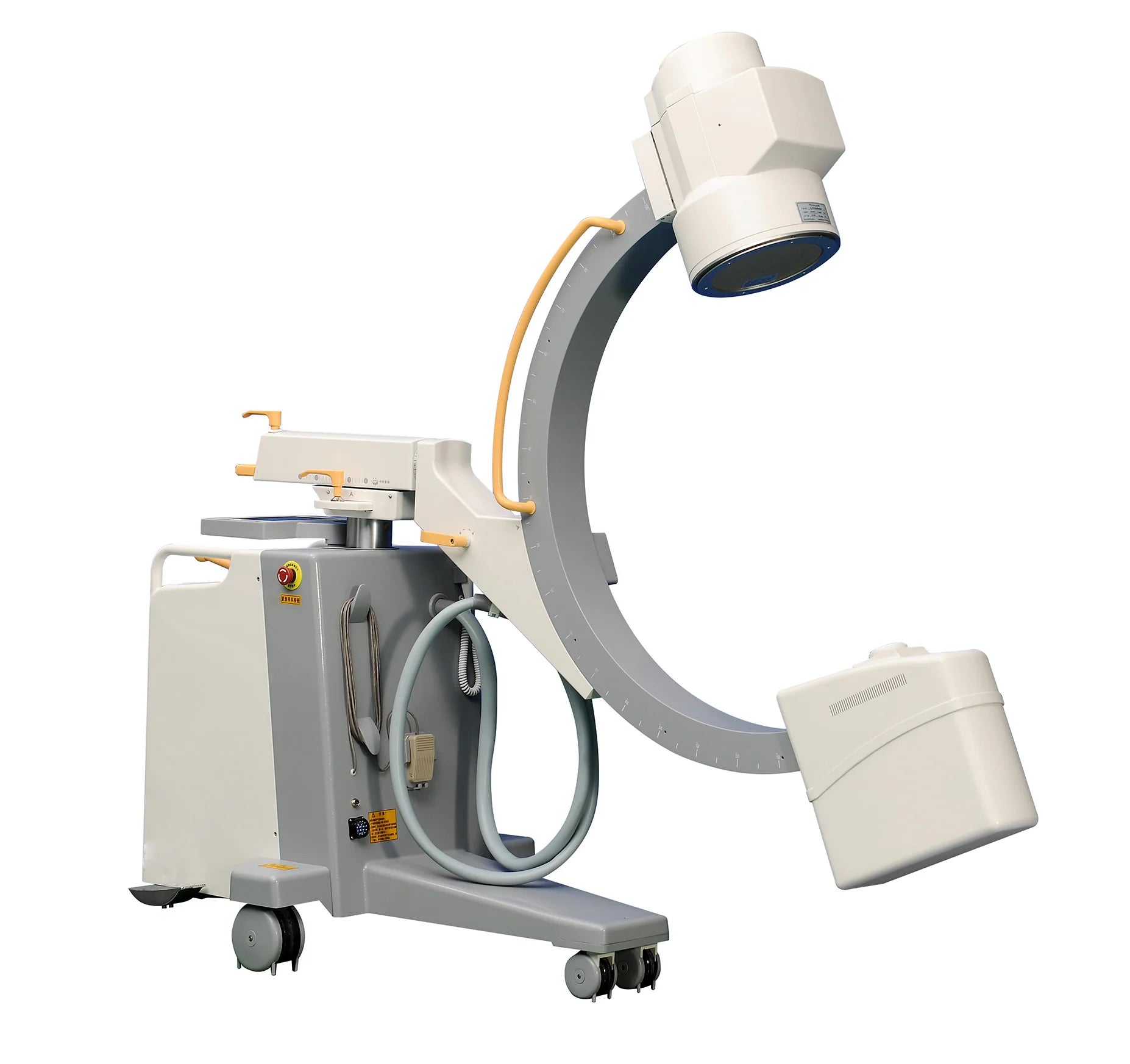

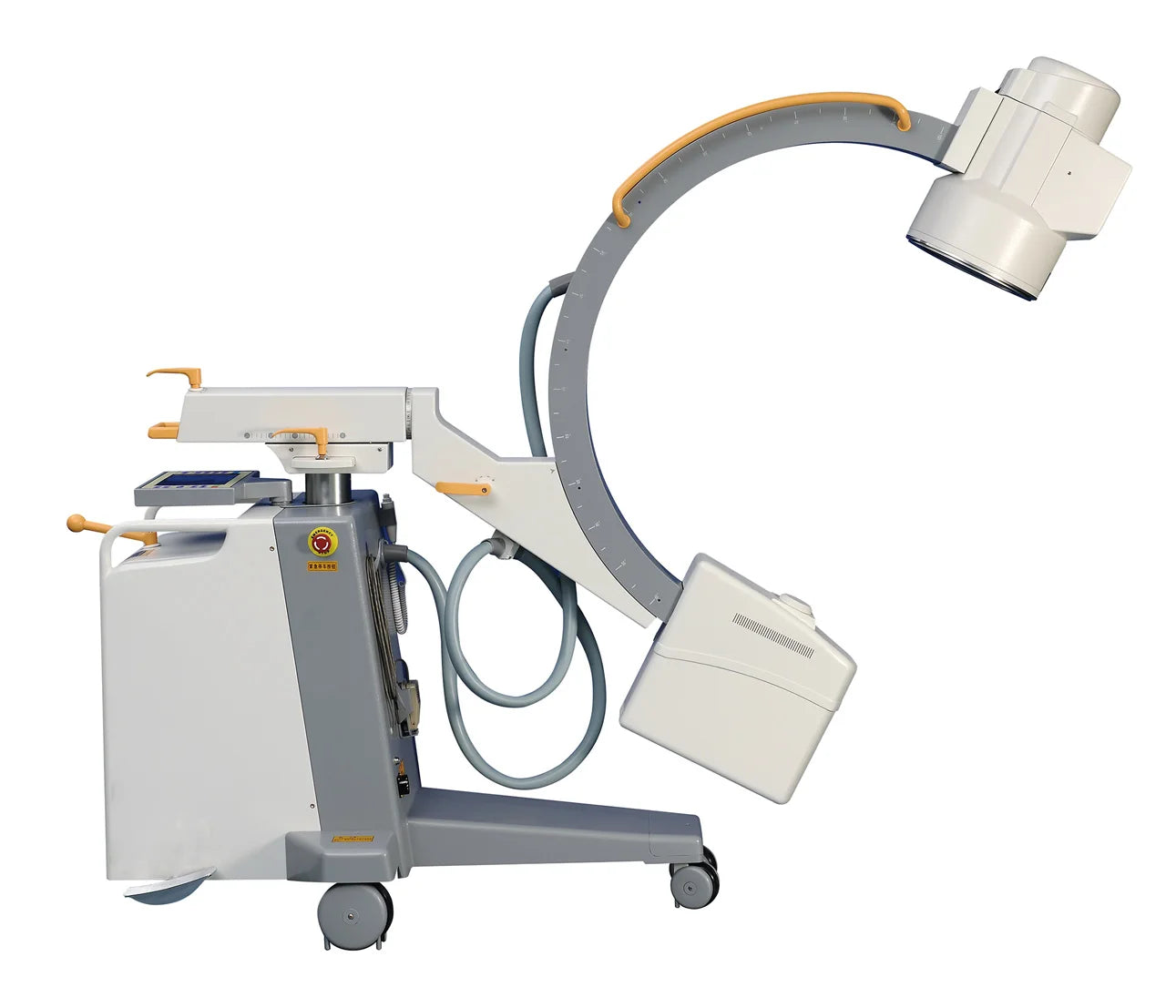

High Frequency Mobile C-Arm X-Ray Machine | Surgical Medical Imaging System

Applications:
This advanced mobile C-arm X-ray machine is widely used across medical departments, including:

• Operating rooms, emergency rooms, and radiology departments

• General surgery, chest surgery, urology, and trauma care

• Spine, abdominal, and orthopedic surgeries

• Bone reduction and fixation procedures

• Endoscopy-assisted surgeries

• Intervertebral disc angiography and angioplasty

• Peripheral angiography and interventional procedures

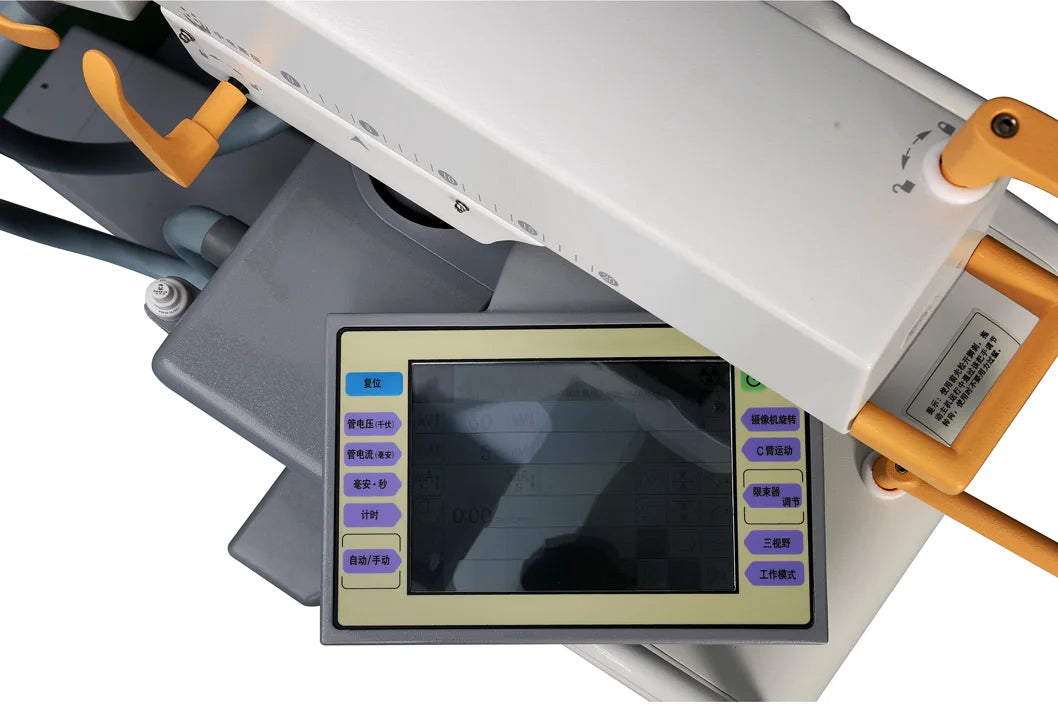

Imaging System Features:

• Recursive noise reduction for clearer images

• Frame freezing for detailed analysis

• Multi-frame image storage for comparison

• Image conversion and rotation functions

• Dual-screen display with side-by-side image comparison

Mechanical Motion Specifications:

• Vertical travel: 0–400 mm

• Horizontal travel: 0–200 mm

• Rotation around horizontal axis: ±180°

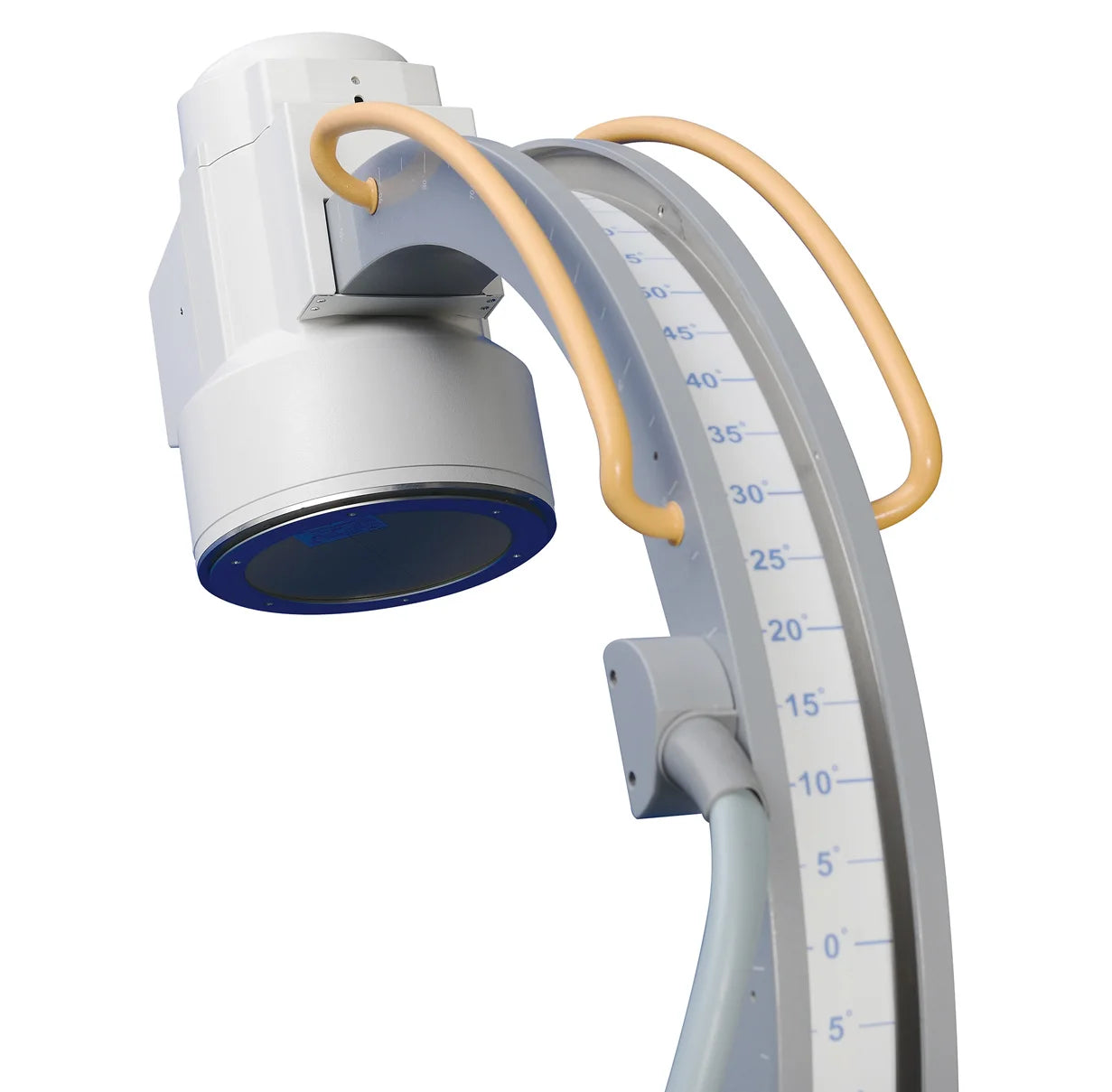

C-Arm Dimensions:

• Focal spot to image detector distance (SID): 1000 mm

• Arm depth: ≥650 mm

• Mobile stand size: 1800 × 800 × 1850 mm

• Image system size: 750 × 530 × 1680 mm

Standard Configuration:

• High-resolution CCD camera (1 set)

• X-ray generator (1 set)

• 9” image intensifier (1 set)

• Image processing system (1 set)

• Dual LCD high-definition displays (2 sets)

• Mobile stand (1 set)
