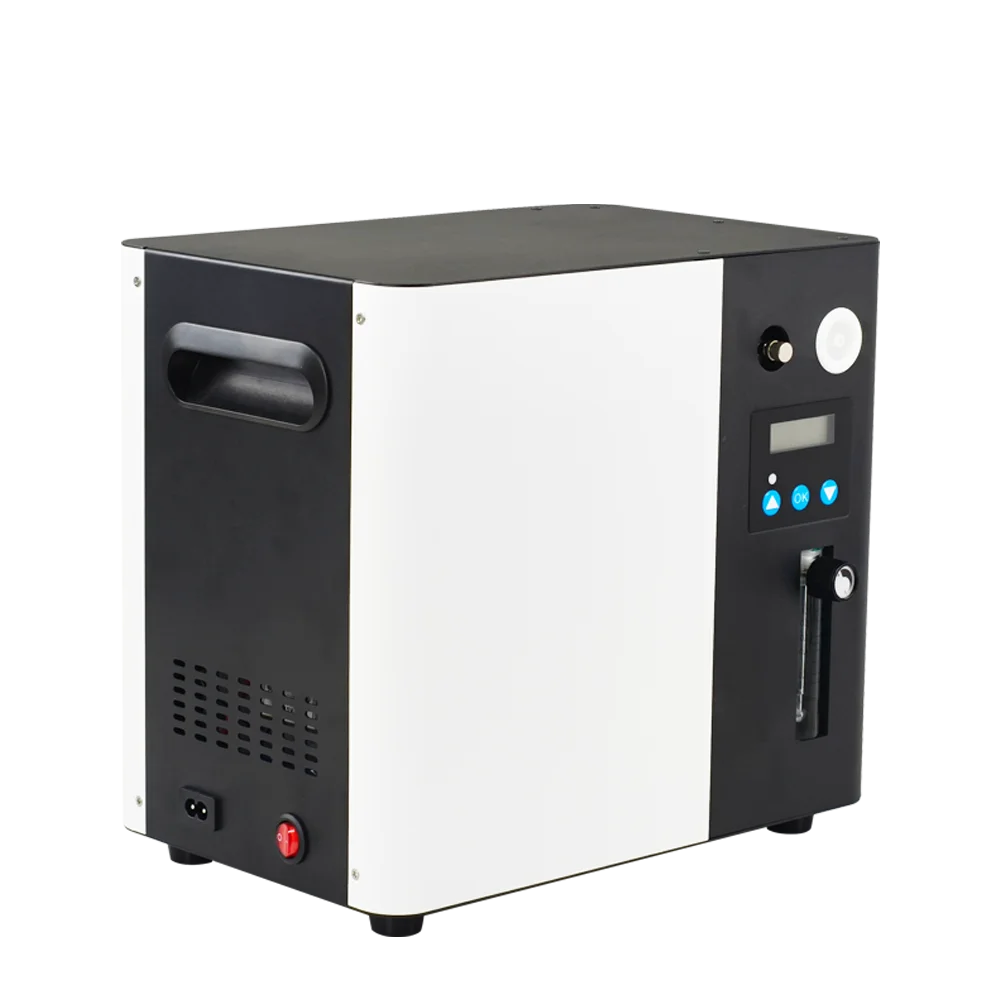

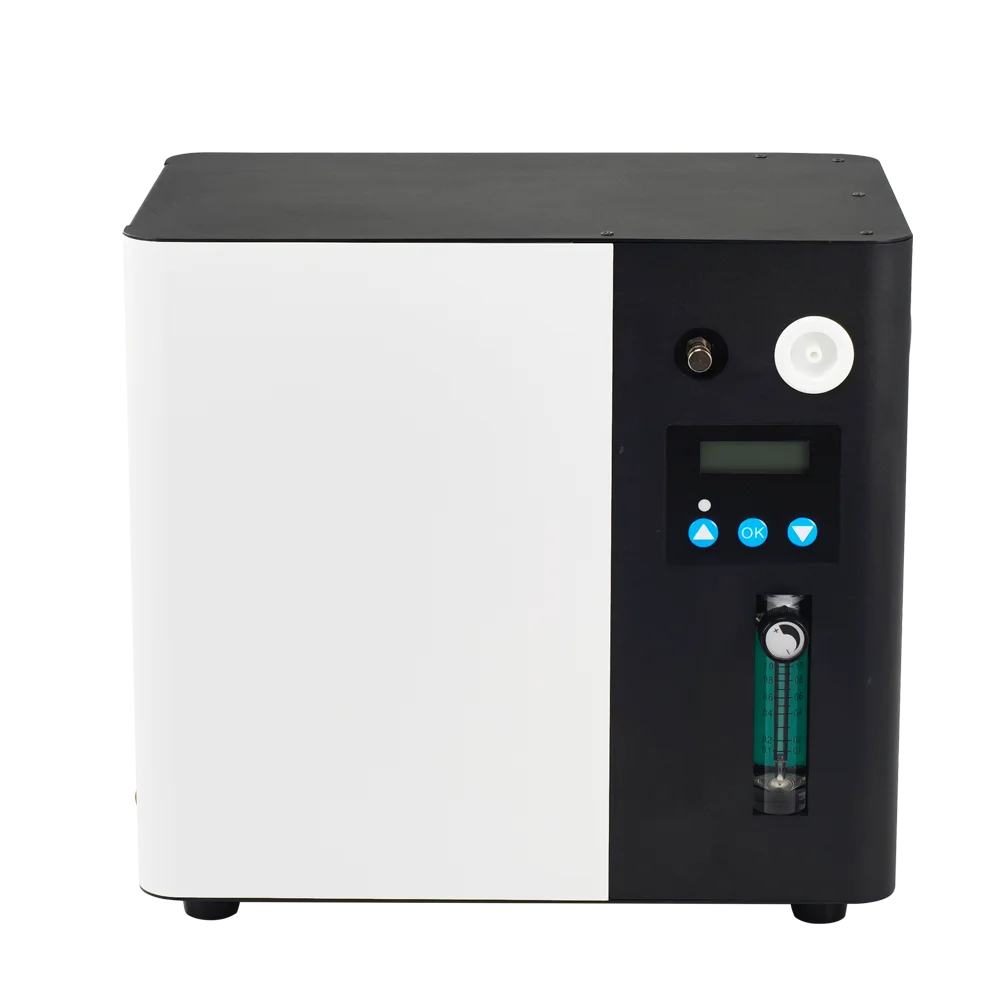

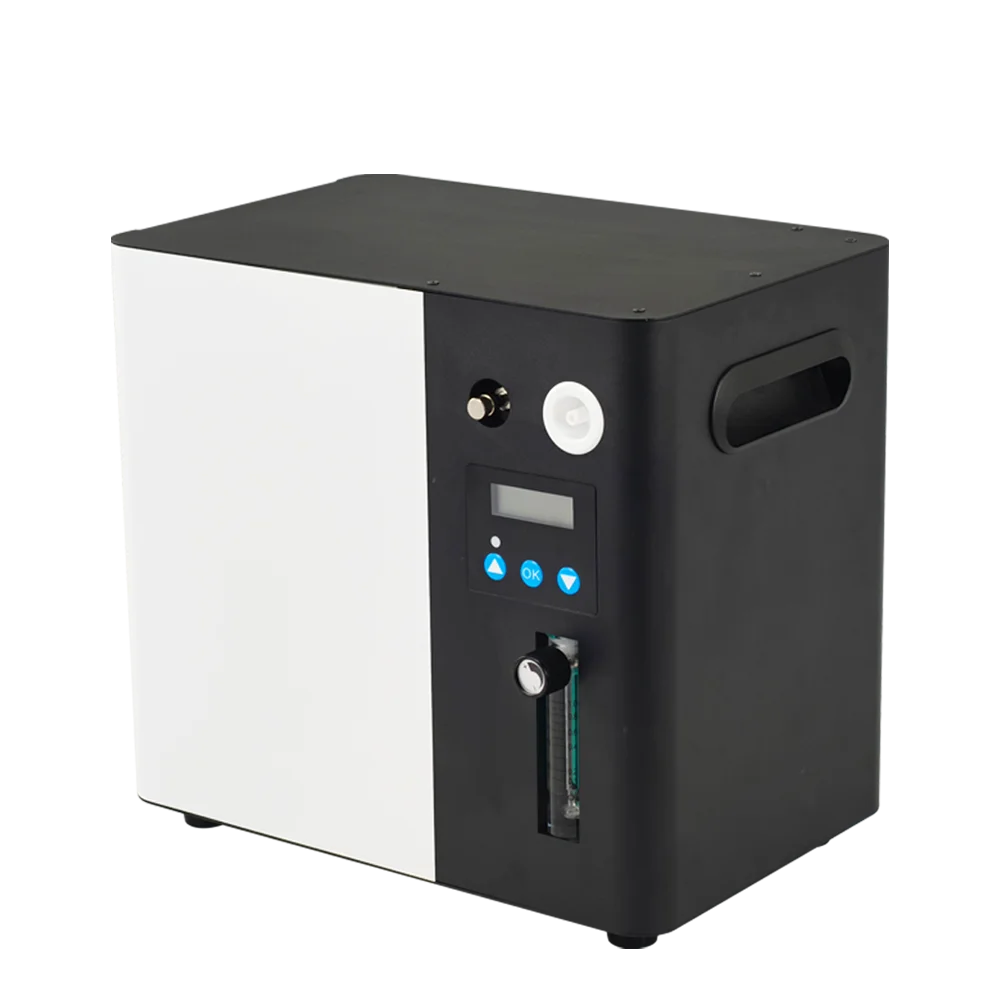

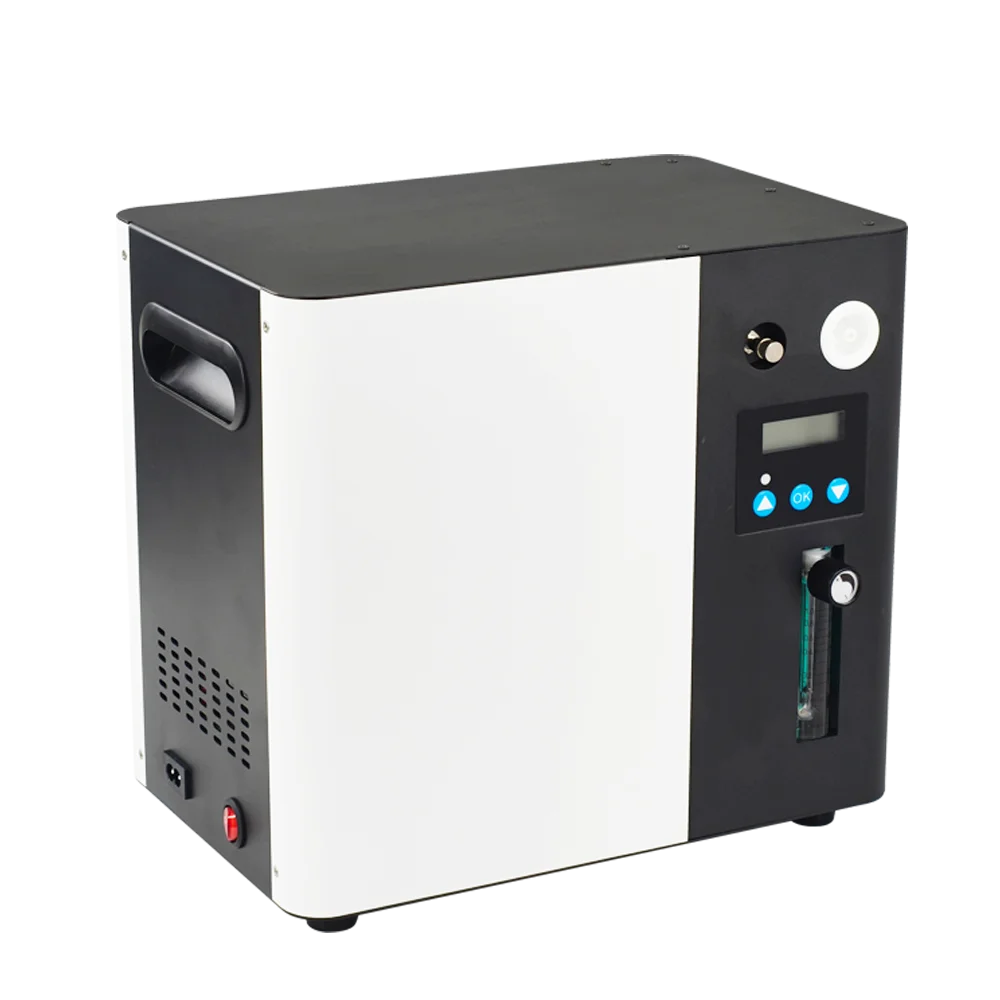

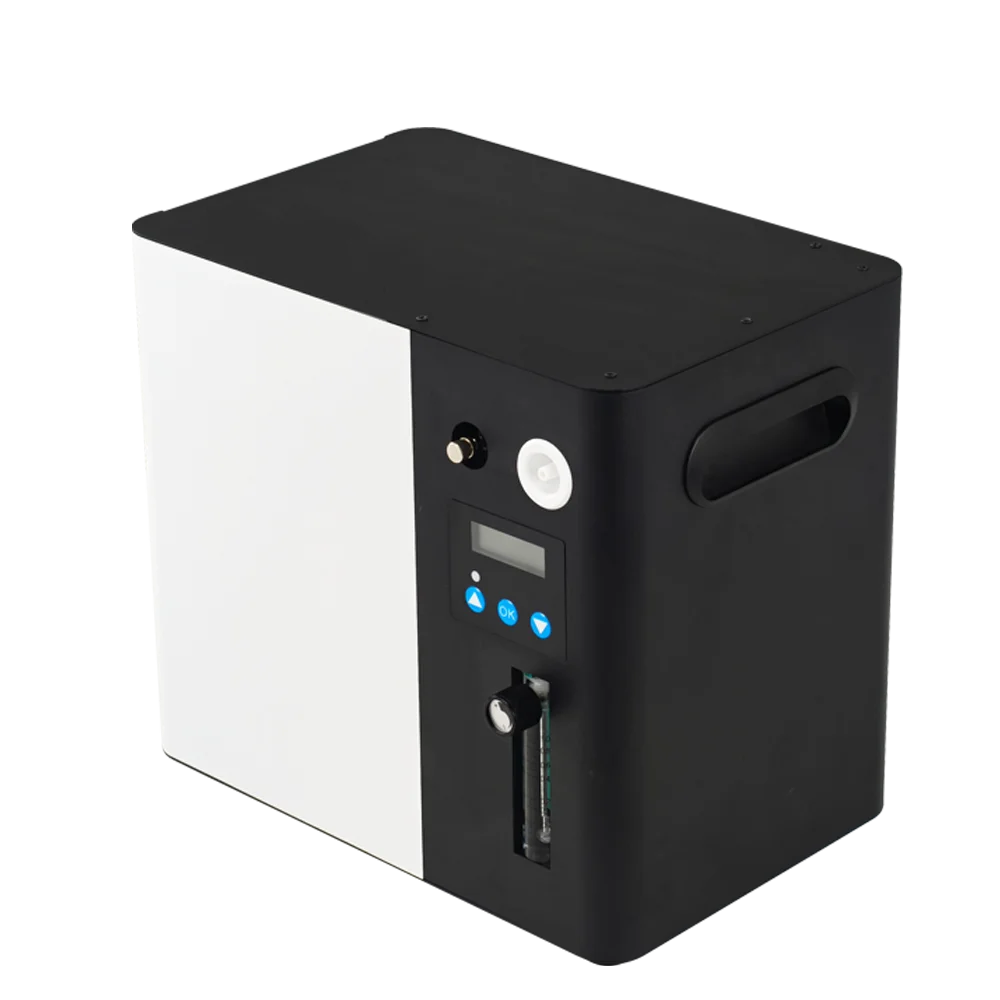

The 0–1 LPM Oxygen Generator is specially designed to provide a stable oxygen source for home ozone machines and users who require low oxygen flow. Built to household appliance standards, it ensures safe and reliable performance in both domestic oxygen supplementation and ozone generator applications.
Using advanced PSA (Pressure Swing Adsorption) technology, this unit separates oxygen from nitrogen and other gases in the air to deliver high-purity oxygen (90% ±3%). It is equipped with a durable mini oil-free compressor and a long-life molecular sieve, ensuring oxygen generation through a pure physical method at a constant flow rate.
For added safety, the machine features an automatic shutdown function when the compressor temperature becomes too high, protecting the system and ensuring long-term durability. With low noise operation (<45 dB), it provides a quiet, efficient oxygen supply for personal and ozone therapy use.
Compact, reliable, and easy to use, this oxygen generator is ideal for supplementary oxygen needs or as an oxygen source for mini ozone generators.
Specifications
-
Product Name: 0–1 LPM Oxygen Generator
-
Model No.: OX1L-02
-
Oxygen Production Method: PSA (Pressure Swing Adsorption)
-
Oxygen Flow Rate: 0.1 – 1 LPM (adjustable)
-
Flow Scale: 0.1 LPM
-
Oxygen Purity: 90% ±3%
-
Oxygen Outlet Pressure: 20 – 70 kPa
-
Rated Power: 100 W (average)
-
Operating Voltage: 220V AC, 50 Hz / 110V AC, 60 Hz
-
Timer Setting: Countdown timer (minutes) or continuous operation
-
Sound Level: < 45 dB (A)
-
Net Weight: 11.2 kg
-
Product Dimensions: 318 × 229 × 300 mm
-
Gross Weight: 28LBS
-
Package Dimensions: 43 × 42 × 32 cm
