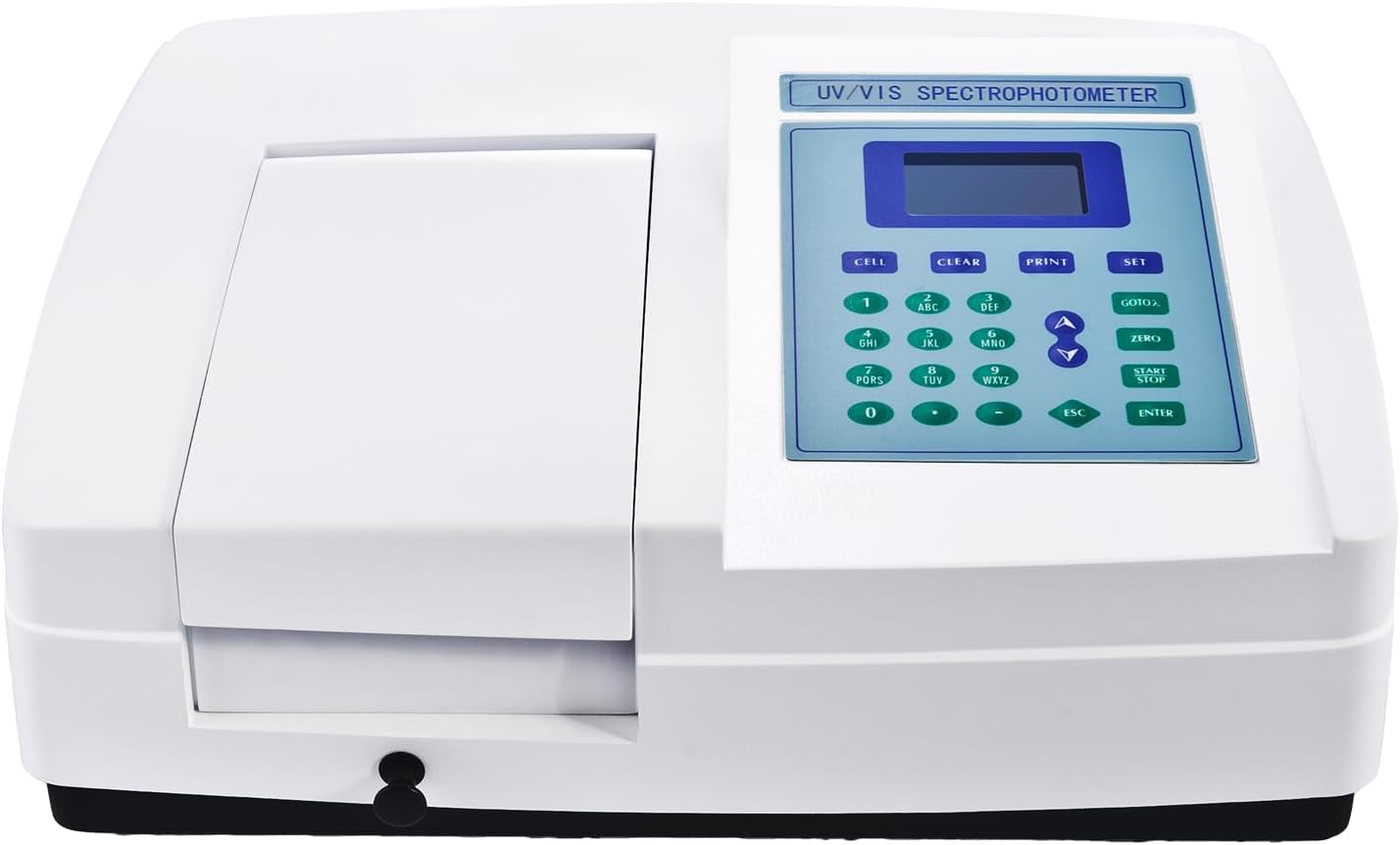

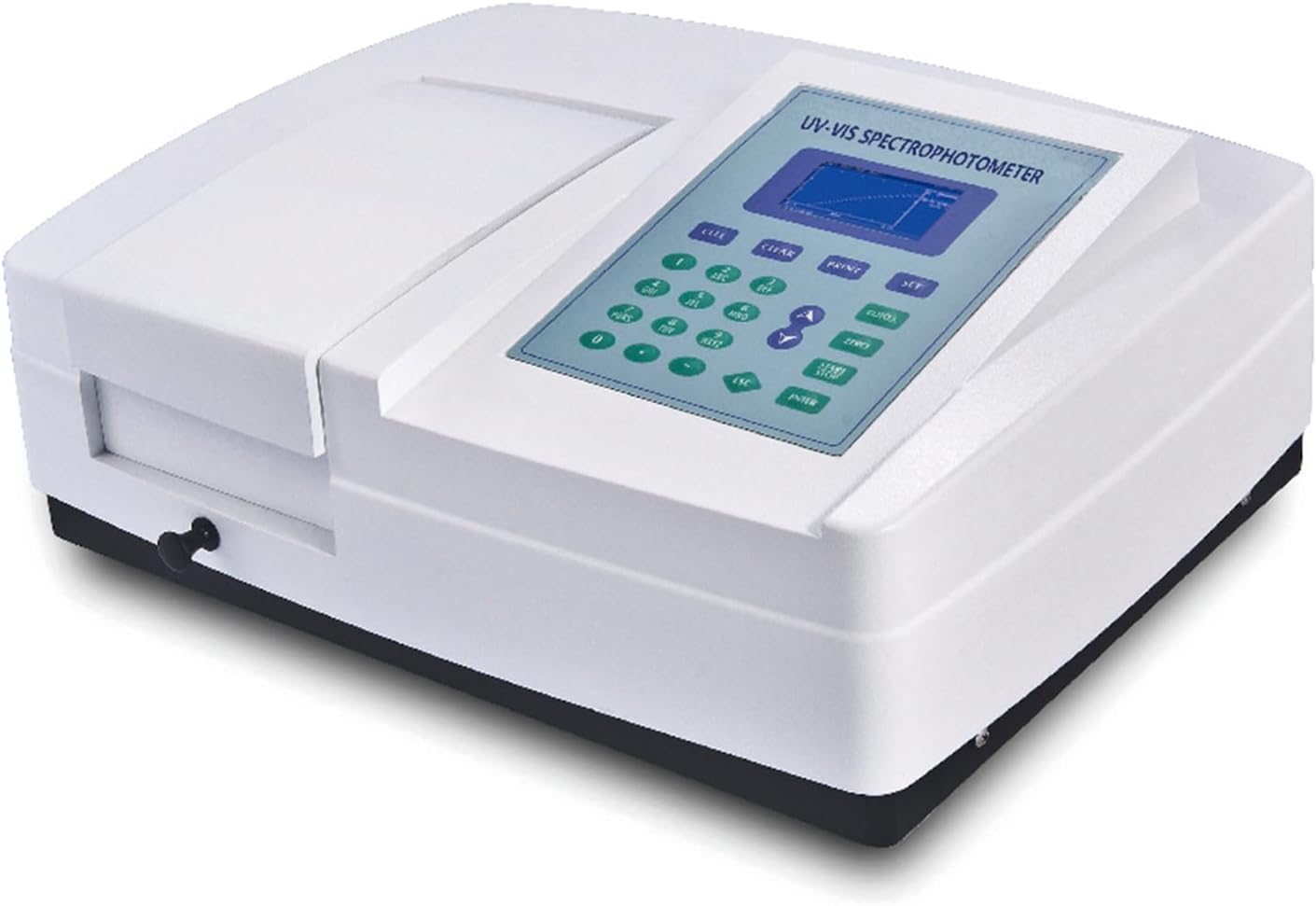

This advanced UV/VIS spectrophotometer combines precision, functionality, and user convenience, making it ideal for laboratories in research, education, medicine, and industry.
Key Features:
-
Large LCD Display:
128×64 dot matrix screen displays up to 200 groups of data (5 groups per screen), including standard curves and curve equations. -
Data Storage & Recovery:
Saves up to 200 curve equations for easy retrieval. Automatic data recovery after unexpected power loss ensures reliability. -
Automatic Functions:
Auto wavelength setting, auto zero, and blank calibration simplify operations and reduce errors. -
Dual Lamp Control:
Deuterium and tungsten lamps can be switched on/off independently to prolong lamp life. Pre-aligned D2 lamp flange design allows for easy replacement. -
PC Software Integration:
Comes with "UV-Professional" software for full spectrophotometer control via USB. Enables multiple test modes:-
Quantitative Analysis
-
Kinetics
-
Wavelength Scanning
-
DNA/Protein Testing
-
Multi-Wavelength Analysis
-
-
Flexible Sample Compartment:
Accommodates cuvettes from 5mm to 100mm path length with optional holders. A wide range of accessories is available to suit diverse testing needs.
Technical Specifications:
-
Optical System: Single beam, grating 1200 lines/mm
-
Wavelength Range: 190–1100nm
-
Bandwidth: 2nm
-
Wavelength Accuracy: ±1.0nm
-
Repeatability: 0.5nm
-
Photometric Accuracy: ±0.3%T
-
Photometric Repeatability: 0.2%T
-
Photometric Range: -0.3–3A, 0–200%T, 0–9999C
-
Stability: ±0.002A/h @ 500nm
-
Stray Light: ≤0.1%T @ 220nm & 360nm
-
Display: 128×64 dot LCD
-
Lamps: Tungsten Halogen & Deuterium Lamp
-
Detector: Silicon photodiode
-
Data Output: USB & Parallel Printer Port
-
Power Supply: AC 220V/50Hz or 110V/60Hz
-
Dimensions: 460×380×180mm
-
Weight: 18kg
This spectrophotometer is an excellent choice for high-precision UV/VIS testing, with a robust design and modern features for efficient lab workflows.
