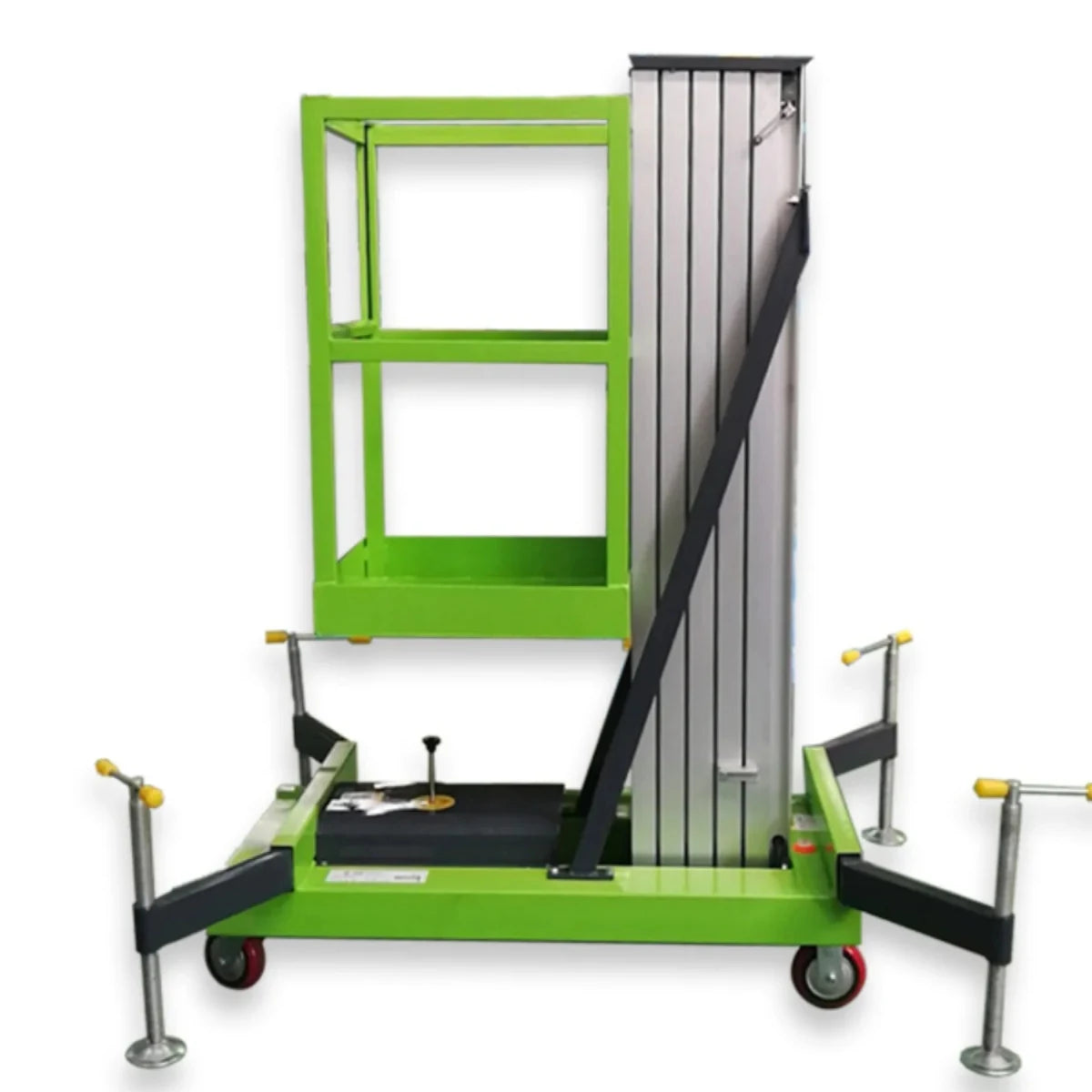

Experience the Ultimate in Efficiency and Safety with our Aluminum Alloy Lifting Platform! Crafted from high-strength, premium aluminum alloy profiles, this platform boasts a sleek design, lightweight construction, and exceptional stability. Ideal for a wide range of applications including maintenance, painting, decoration, and more, it offers easy maneuverability and single-operator control for added convenience. With a maximum working height of 10m and a safe working load of 280lbs, it's the perfect solution for various industrial and commercial settings. Trust in our MGTWY081 model for reliable performance and peace of mind on the job.
SpecificationsÂ
-
Maximum Working Height: 32 ft 10 in (10 m)
-
Maximum Platform Height: 26 ft 3 in (8 m)
-
Safe Working Load: 260–330 lbs
-
Maximum Number of Workers: 1
-
Minimum Ground Clearance: 2 in (0.05 m)
-
Lift Motor: 220V / 1.1kW
-
Lift Speed: 9.8–16.4 ft/min (3–5 m/min)
-
Tyres: 6
-
Lift Mechanism: Aluminum Alloy Elevator
-
Lift Drive / Actuation: Electric
-
Power: 110V or 220V / 1.1kW
-
Condition: New
-
Weight of the Machine: 750–880 lbs (380 kg)
-
Warranty: 1 Year
-
Warranty of Core Components: 1 Year
-
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Other
Dimensions
-
Working Platform Size (L × W × H):
2 ft 1.6 in × 2 ft 1.6 in × 3 ft 7.3 in (650 × 650 × 1100 mm) -
Overall Dimensions (L × W × H):
4 ft 7.9 in × 2 ft 6.7 in × 6 ft 5.6 in (1420 × 780 × 1970 mm) -
Leg Expansion Size:
5 ft 7 in × 6 ft 3.4 in (1702 × 1914 mm) -
Wheel Base:
4 ft 2.8 in (1.29 m) -
Mesa Material:
1.6 in × 0.8 in × 0.06 in (40 × 20 × 1.5 mm) -
Quarter Bend:
0.12 in (3 mm)
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Factories, Farms, Restaurants, Home Use, Retail, Food Shops, Printing Shops, Construction Works, Energy & Mining, Food & Beverage Shops, Advertising Companies, and more.
Shipping And Delivery

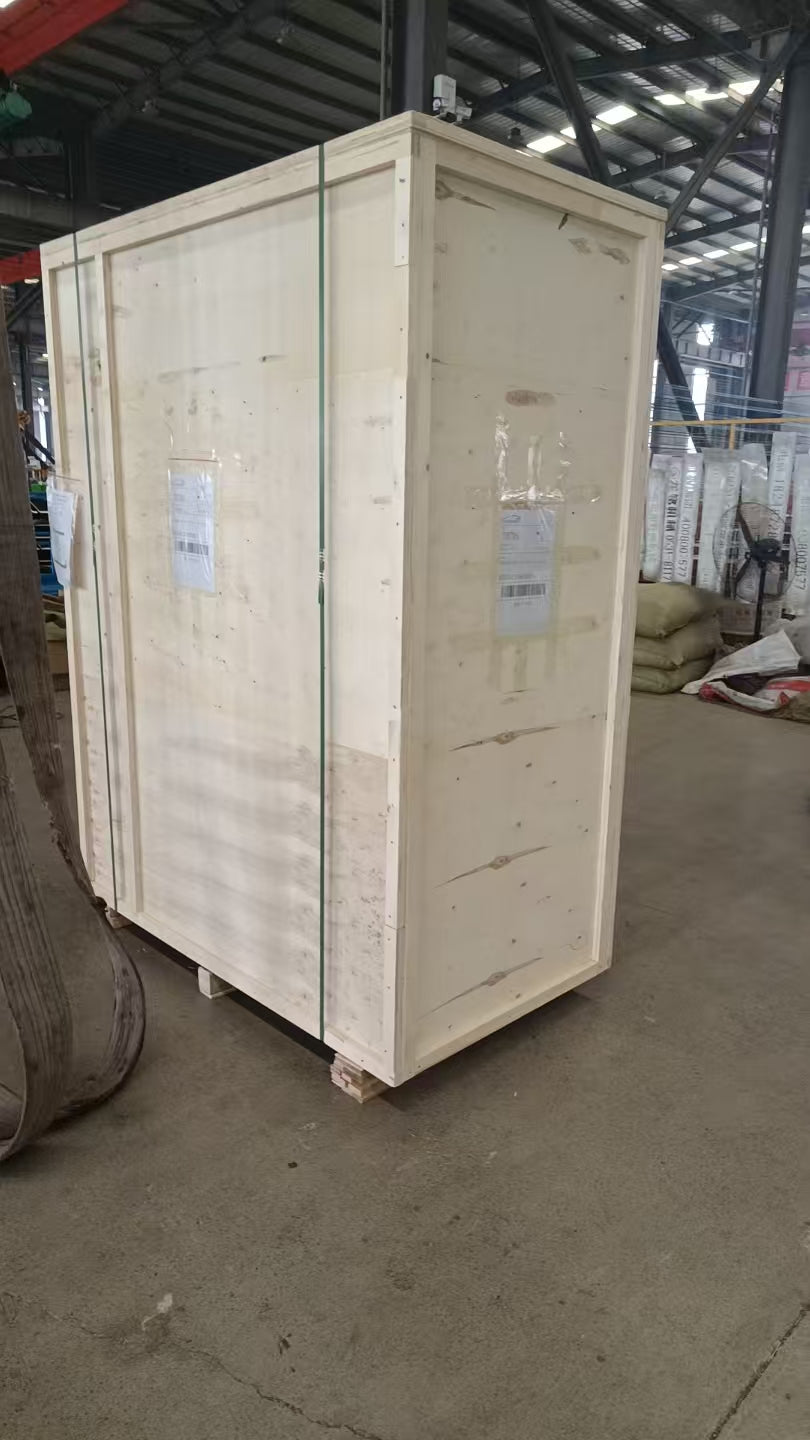

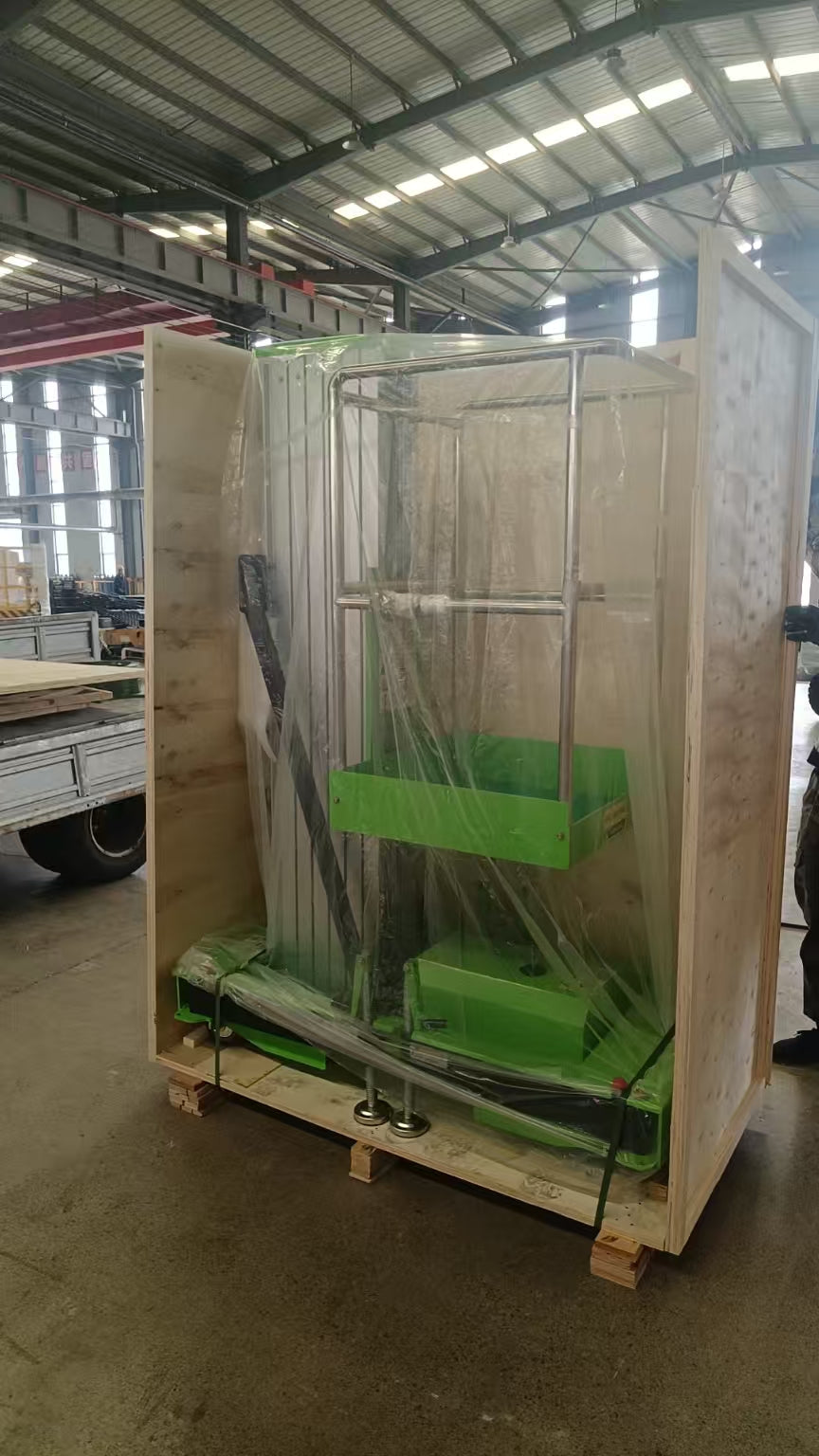

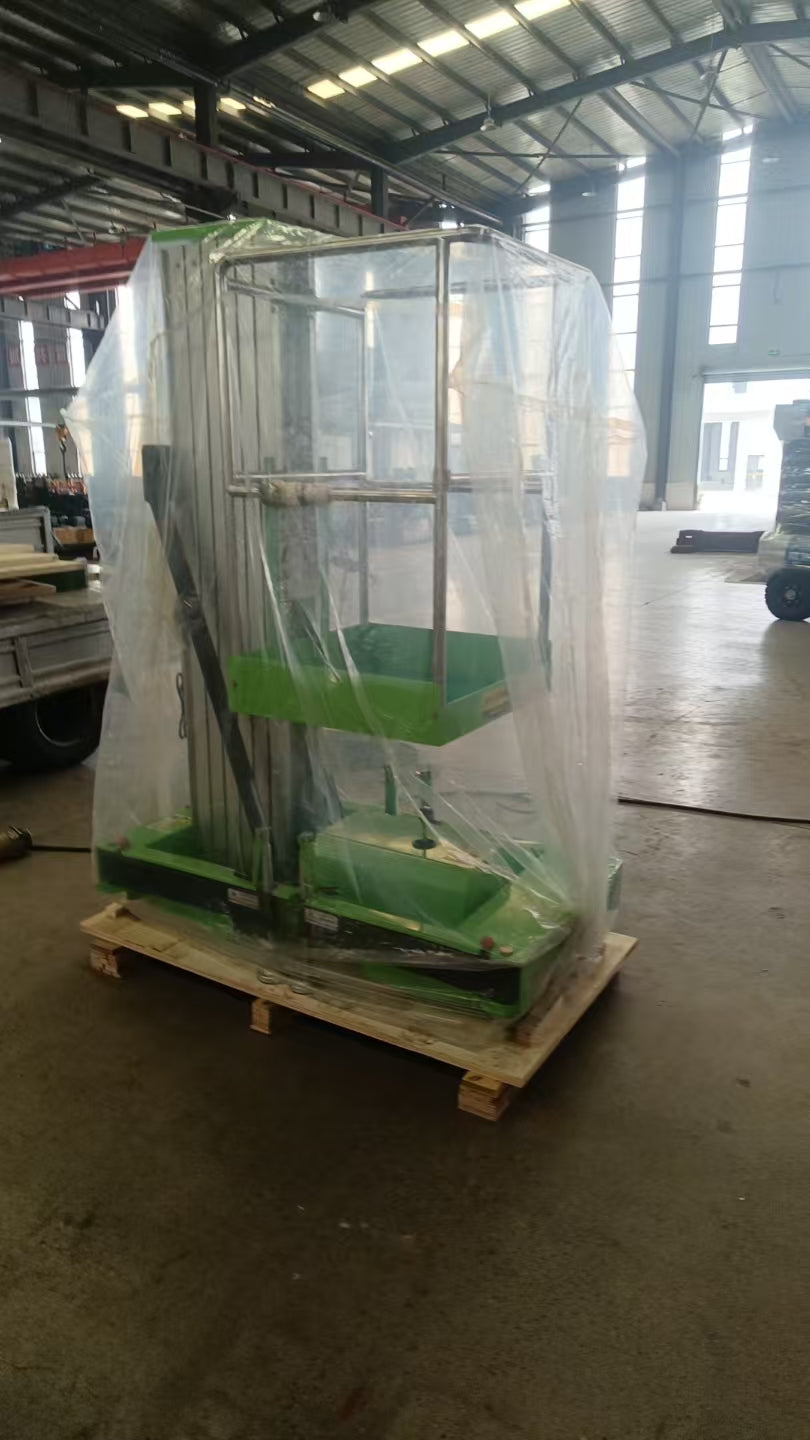

Delivery comes in large shipping box as seen in picture below
To ensure a smooth delivery process, please provide a valid daytime phone number and email address at checkout.
Shipping Details:
-
Standard shipping via common carrier is included in the listed price.
-
Delivery is curbside only and will require a signature upon arrival.
-
The carrier will contact you in advance to schedule a delivery time.
Please Note:
Additional fees may apply if special delivery arrangements are needed (e.g., remote locations, restricted access, or inside delivery).
Estimated Delivery Time:
Orders typically arrive within 2-3 weeks from the date of purchase.
