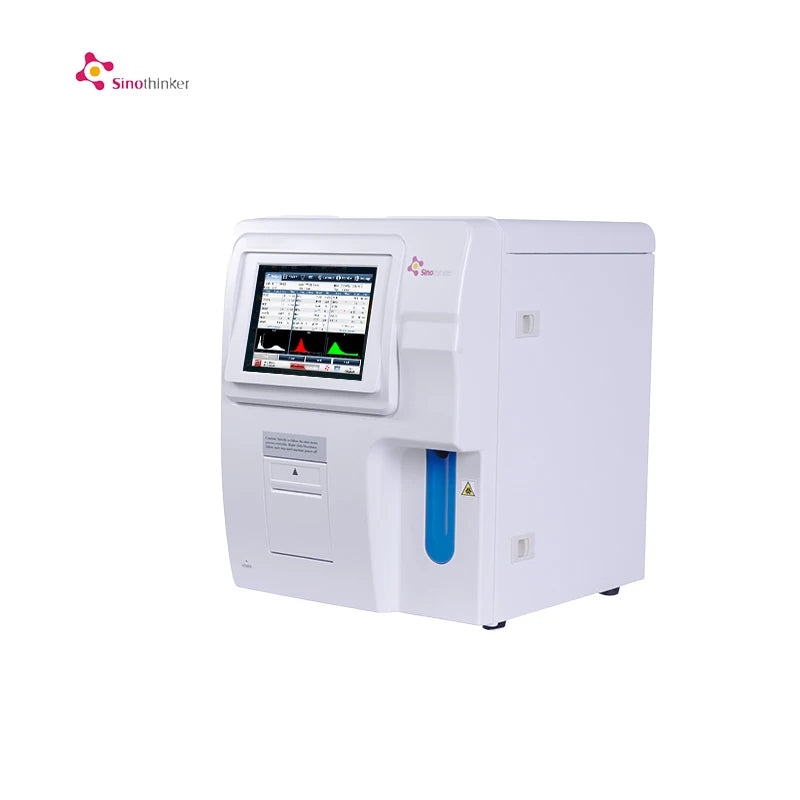

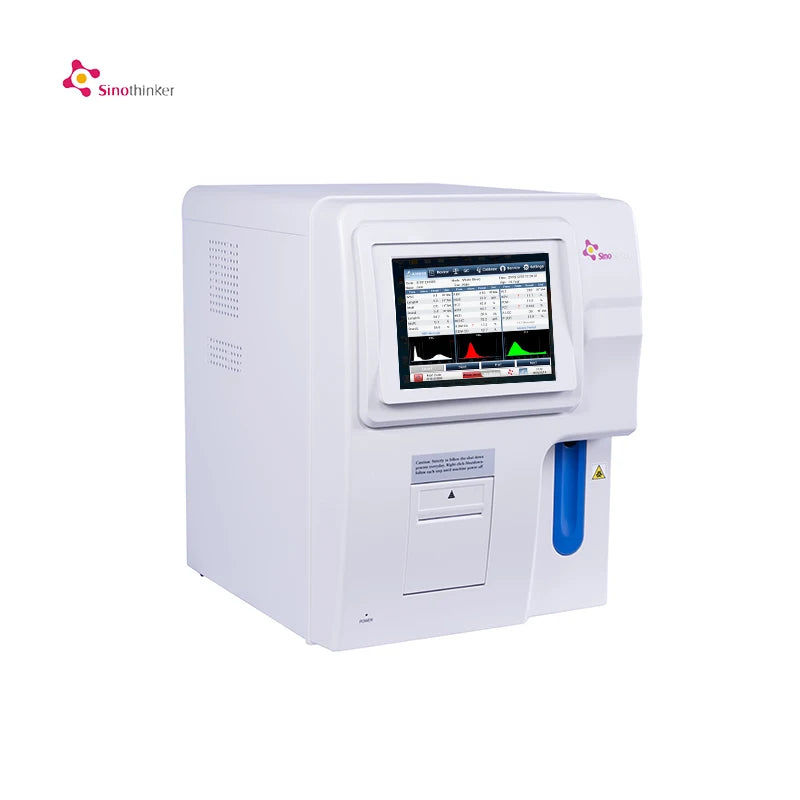

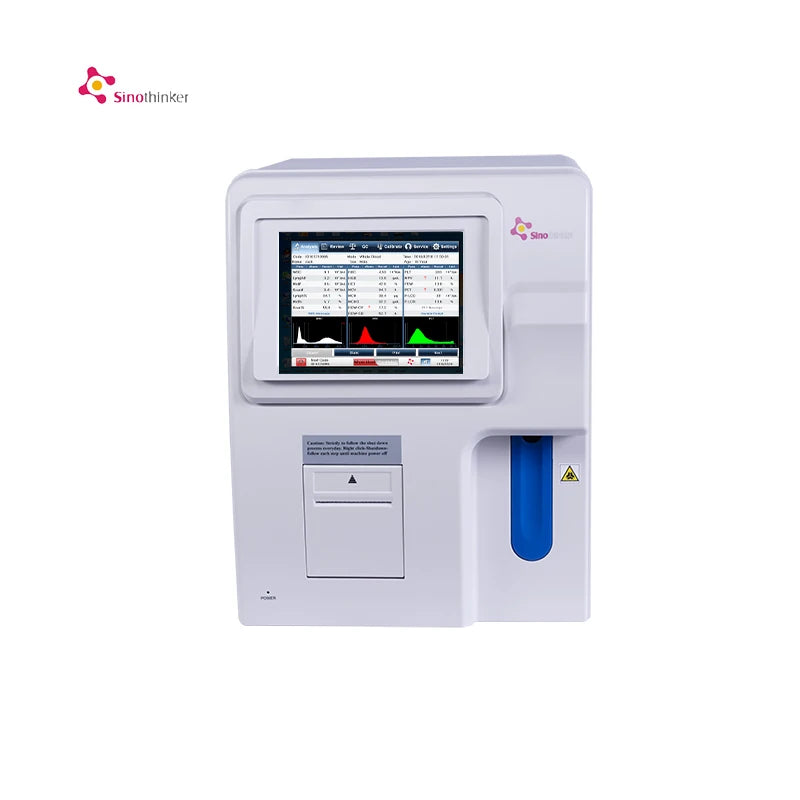

Double Channel Hematology Analyzer – Full-Auto Clinical Blood Cell Counter for Human & Animal Use
The Double Channel Hematology Analyzer is a high-performance, full-automatic clinical test machine designed for both human and veterinary use. Engineered for speed, accuracy, and flexibility, this analyzer is ideal for hospitals, animal clinics, research labs, and diagnostic centers.
🔬 Key Features:
-
Dual-Channel Operation with a unique hemoglobin testing system
-
Supports 3-part WBC differentiation, with 24 hematology parameters and 3 color histograms (WBC, RBC, PLT)
-
Compatible with human samples and multiple animal types:
Cat, Dog, Horse, Mouse, Rat, Rabbit, Pig, Cow, Monkey, Sheep
Plus, 4 user-defined animal settings
⚙️ Technical Specifications:
-
Throughput: Processes 60+ samples/hour, supports 24/7 operation with auto sleep/wake functions
-
Sample Volume:
-
Venous/Capillary: 9.8μL
-
Prediluted Mode: 20μL
-
-
Storage: Holds up to 100,000 test results with histograms for easy review and data management
-

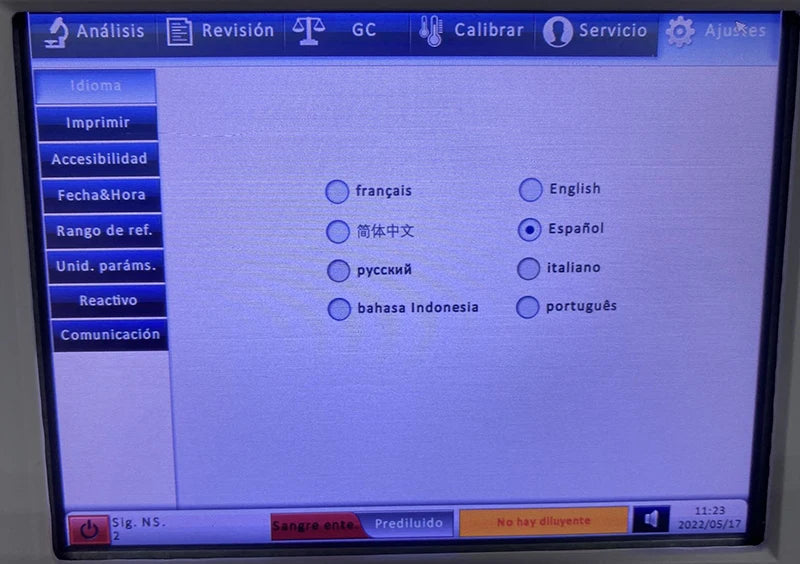

Screen: 8.4-inch intuitive touchscreen interface
-
Print Output: Built-in graphic thermal printer with optional external printer
-
Connectivity: RS232, parallel printer, and keyboard ports
-
QC Control: X-B, L-J, X, SD, CV%
-
Language: English
-
Methodology: Electrical resistance for cell counting, hemiglobincyanide and SFT method for hemoglobin
-
Operating Temperature: 18°C – 30°C; Humidity: 10–90%
-
Power Supply: 110V/220V ±22VAC, 50±1Hz
-
Dimensions: 33 × 38 × 43 cm
-
Weight: 44 lbs (approx. 20 kg)
-
Warranty: 1 Year Manufacturer Warranty
✅ Ideal For:
-
Clinical laboratories
-
Animal hospitals and veterinary clinics
-
Research institutions
-
Medical and academic facilities
This advanced full-auto cell blood counter ensures fast, reliable diagnostics across a broad spectrum of species—offering a complete hematology solution in one compact machine.
- Model Number : MSHK91106
- Methodology : electrical resistance for counting, hemiglobincyanide method
- Parameter : 3-part differentiation of WBC; 24 parameters
- work mode : double Channel+ unique hemoglobin test system
- sample volume : 9.8uL for venous and capillary mode, 20uL for prediluted mode
- screen : 8.4 inch touch screen
- QC control : X-B, L-J, X, SD, CV%
- input/output : RS232, parallel printer and keyboard
- Storage : 100000
- Throughput : 220V±22VAC, 50±1Hz
- Warranty : 1 Year
