Digital Clarity Haze Meter for Transparent & Translucent Materials – Glass, Plastic, Film, Liquid

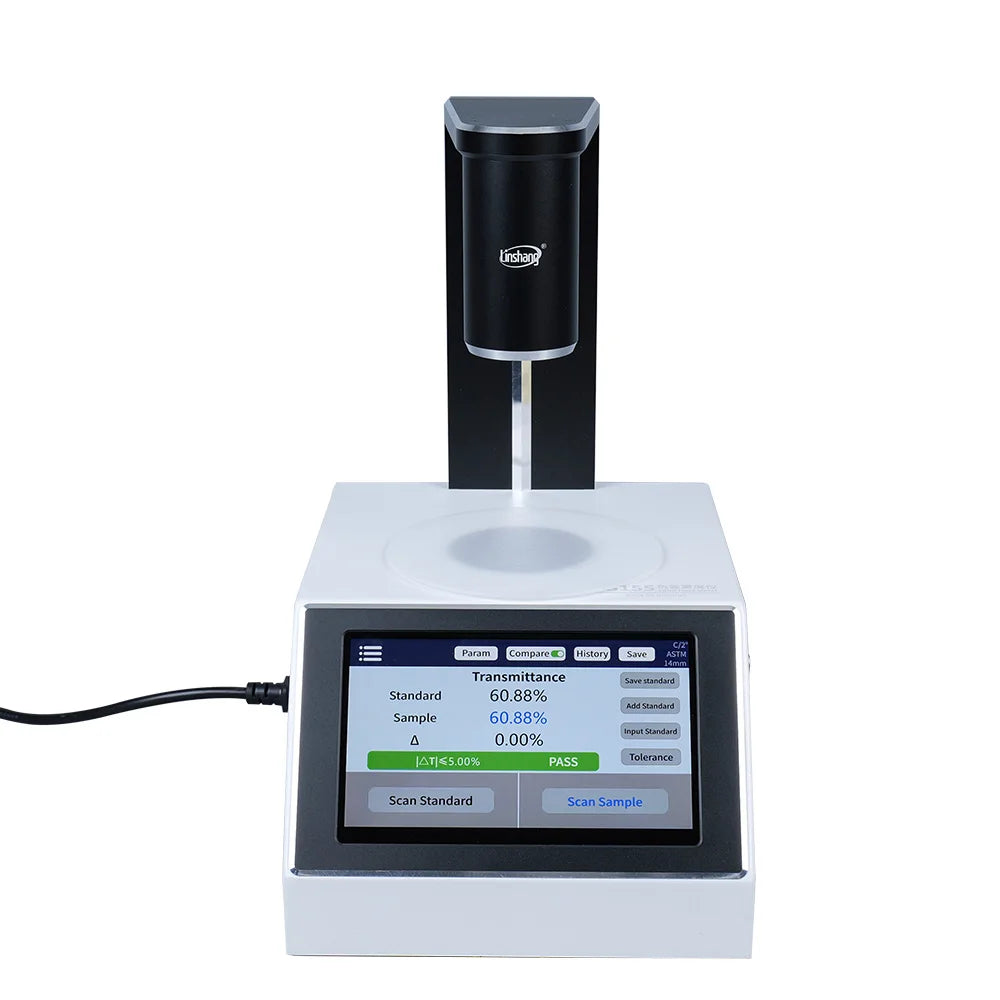

This digital haze meter is a versatile and advanced instrument designed for the accurate measurement of haze, transmittance, and color in transparent and semi-transparent materials. It utilizes a full-spectrum LED light source and a precision spectral sensor, making it ideal for testing materials such as frosted glass, matte surfaces, milky films, and clear plastics. The integrated 7-inch capacitive touchscreen ensures intuitive operation and a superior user experience.
Key Features:
-

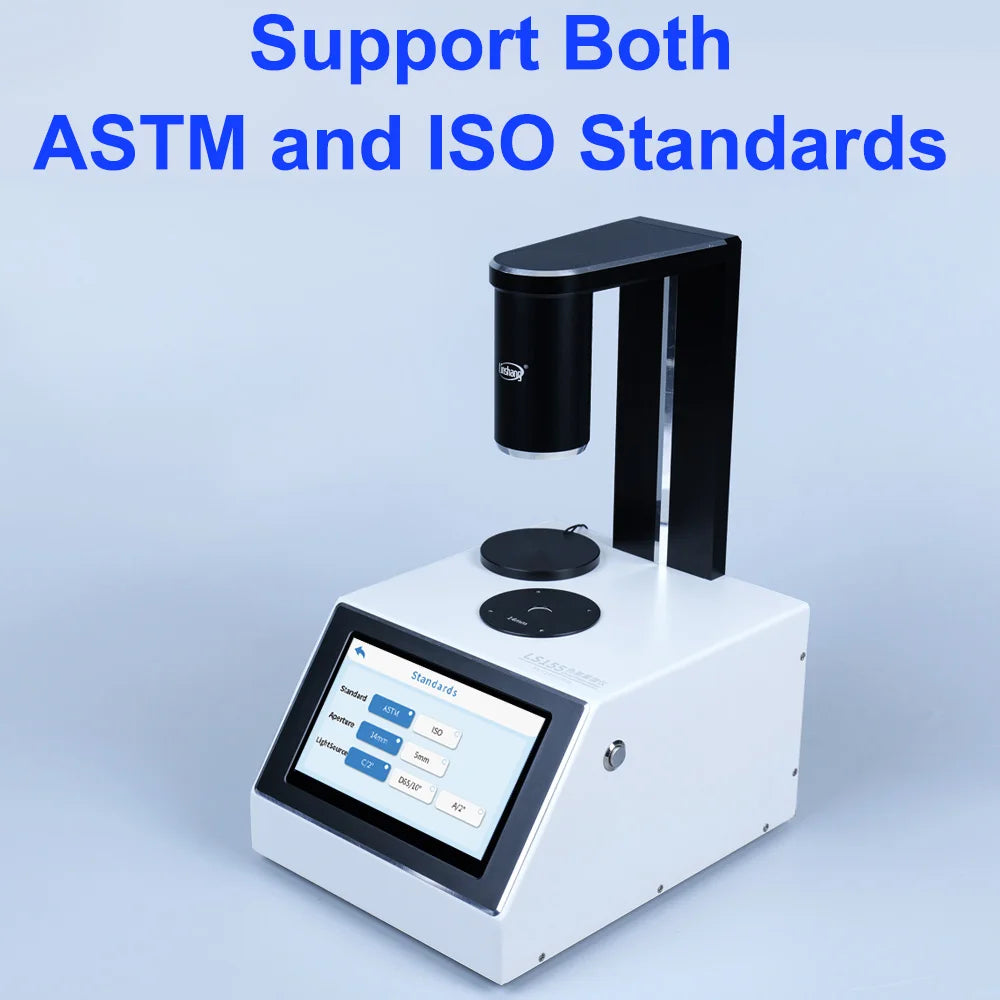

Standards Compliant – Fully complies with ASTM and ISO standards to meet various testing requirements.
-

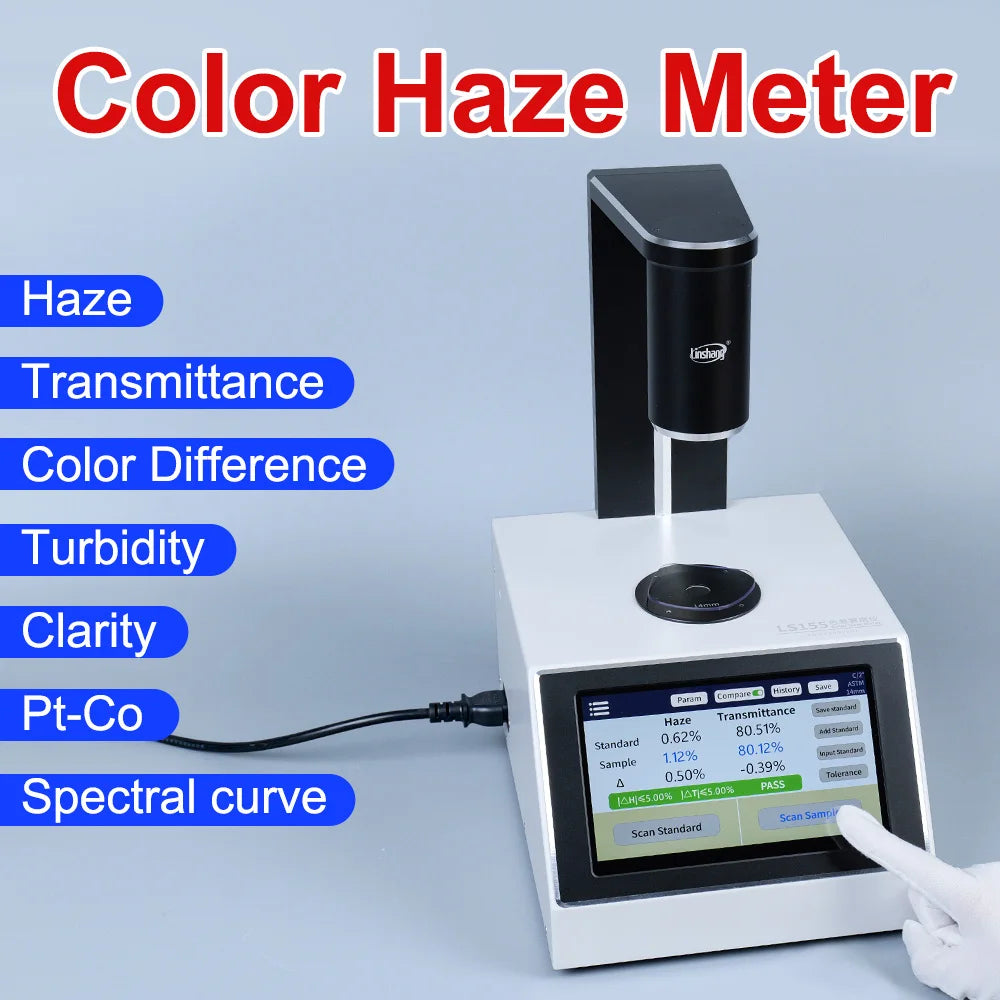

Multi-Function Testing – Measures haze, total transmittance, and color values, while displaying the spectral transmittance curve.
-
User-Friendly Modes – Simple and comparative modes make switching between quick checks and detailed analysis effortless.
-
Touchscreen Operation – 7-inch IPS touchscreen provides fast, interactive control and data viewing.
-
High Repeatability – Outstanding stability with haze and color difference repeatability of ≤0.03; transmittance repeatability ≤0.05.
-
Superior Accuracy – Engineered for precise measurements with guaranteed performance at certified metrology labs.
-

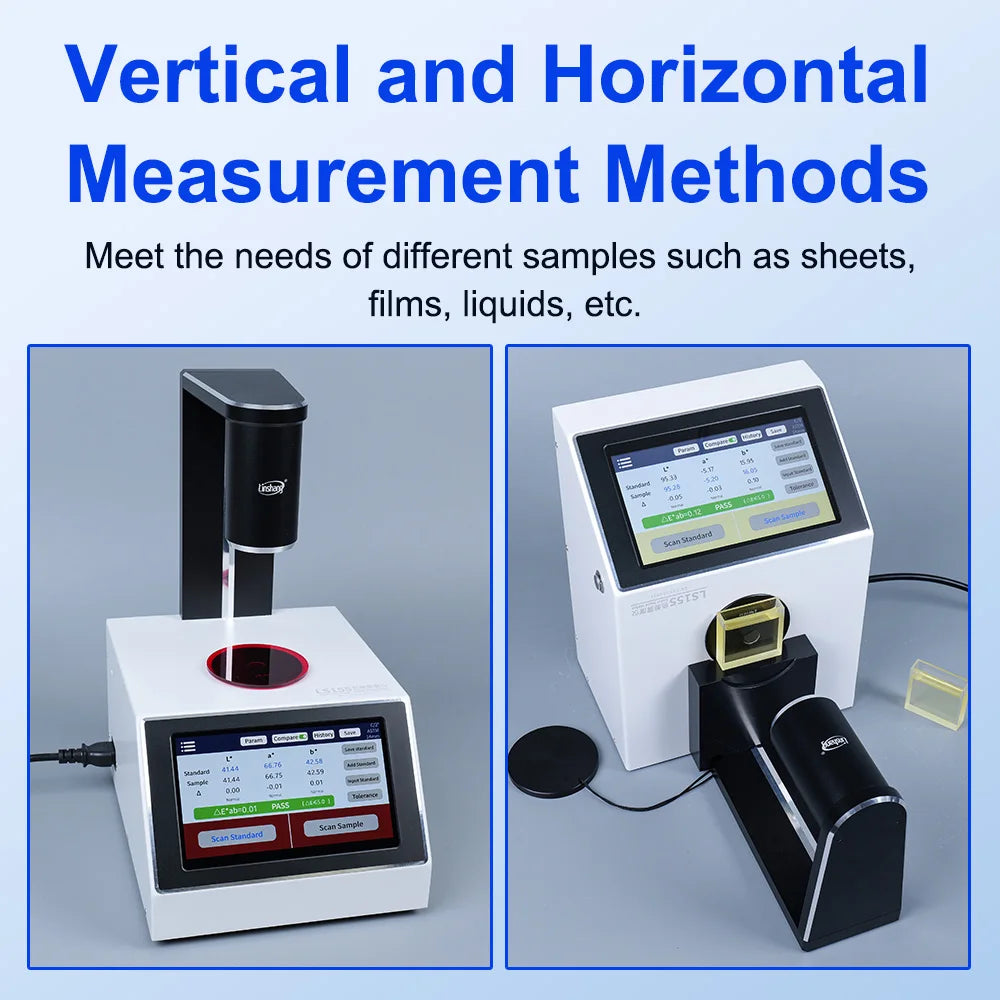

Flexible Orientation – Offers vertical and horizontal testing, with the capability to test liquids and solids.
-

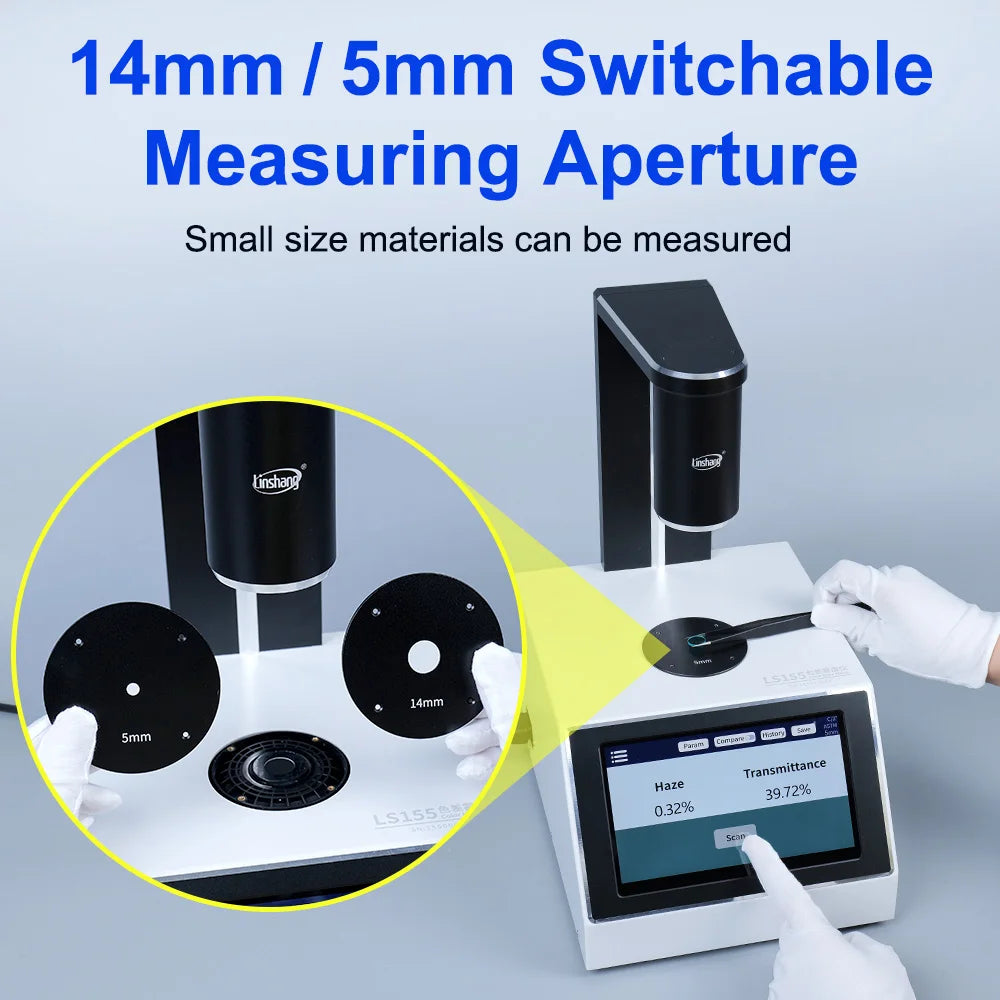

Dual Aperture System – Includes 14mm and 5mm apertures to accommodate different sample sizes and types.
-
Multiple Standard Illuminants – Supports A, C, and D65 illuminants with customizable viewing angles.
-

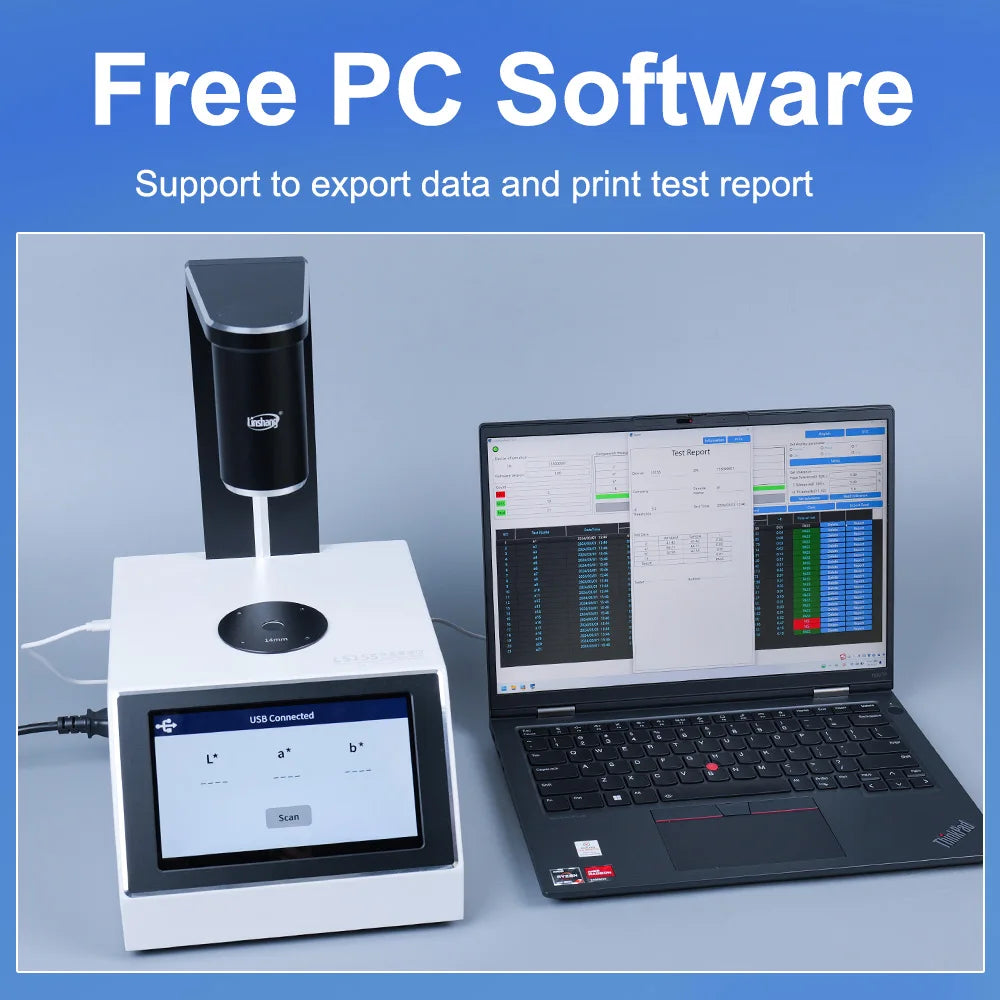

PC Connectivity – Includes dedicated PC software for real-time measurement, data export, and report generation.
Technical Specifications:
| Parameter | Value |
|---|---|
| Illumination Geometry | D/0° |
| Light Source | Full-spectrum LED |
| Spectral Range | 400–700 nm |
| Spectral Interval | 10 nm |
| Measuring Aperture | 5 mm / 14 mm |
| Measurement Conditions | D65 (10°), A (2°), C (2°) |
| Measurement Time | Approx. 3 seconds |
| Parameters Measured | Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral |
| Transmittance Resolution | 0.01% |
| Transmittance Accuracy | ±1% |
| Haze Accuracy | ±2% |
| Color Repeatability | ΔE*ab ≤ 0.03 |
| Power Supply | 100–277V, 50/60Hz |
| Display | 7" IPS color screen, 1024x600 resolution |
| Languages | English, Simplified Chinese |
| Data Interface | USB (Type-C) |
| Operating Temp | 0–45℃, 0–85% RH (non-condensing) |
| Storage Temp | -25–55℃, 0–85% RH (non-condensing) |
| Dimensions | 211 × 264 × 360 mm |
| Weight | 5.3 kg |
Ideal for industries such as glass manufacturing, plastic production, film processing, and coating inspection, this haze meter offers precise analysis for quality control and research applications.
- warranty : 1 Year
- model number : LSHM150
- Model : LS155 Color Haze Meter
- Illumination geometry : D/0°
- Spectral Range : 400-700nm
- Spectral Interval : 10nm
- Measuring aperture : 5mm/14mm
- Measuring parameter : Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance
- Transmittance resolution : 0.01%
- Transmittance accuracy : Better than ±1%
- Transmittance repeatability : ≤0.03
- Haze resolution : 0.01%
- power : Electronic
