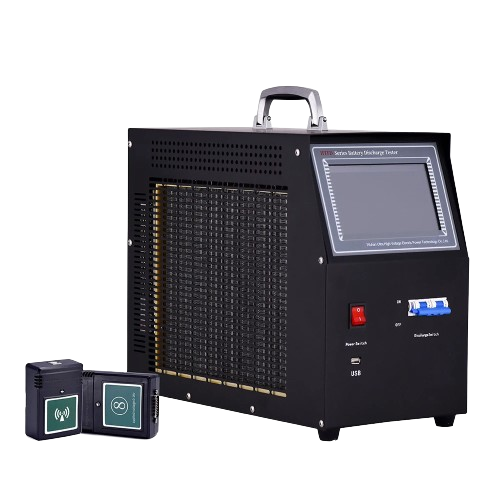

Discover the Digital DC Power Load Capacity Test Set, your ultimate solution for battery discharge testing.
Features:
- Constant current discharge function allows for continuous adjustable current, ensuring accurate measurement of battery capacity.
- Wireless monitoring function enables real-time monitoring of monomer voltage, with each module capable of monitoring up to 12 monomers simultaneously.
- Comes with Chinese background analysis software, featuring remote control discharge functionality.
- Equipped with a host boasting a USB interface and a generous 2G super capacity internal data storage space.
- Dual CPUs work in tandem to guarantee safety, reliability, and precision during testing.
- Discharge can be suspended, and parameters can be modified without terminating the discharge test.
Specifications:
- Working Mode: Can be used alone, simultaneously, or for remote control and status monitoring.
- Applicable Battery: 48V, 110V, 220V, 380V
- Charging Voltage: 40～60V, 95～150V, 190～300V, 350～450V
- Charging Current: 10～150A, 1～80A, 1～40A, 1～20A
- Discharge Voltage: 10～60V, 80～135V, 80～270V, 300～460V
- Discharge Current: 0～150A, 0～200A, 0～100A, 0～60A
- Accuracy of Current: 1%
- Voltage Accuracy: 0.5%
- Monomer Voltage Accuracy: 0.2%
- Monomer Voltage: 0.500V～16.00V (resolution 1mv)
- Charge/Discharge Time: 0 ~ 99 hours and 59 minutes
- Power Supply: AC: 220V/380V
- Cooling Method: Forced air cooling
- Handling Method: Industrial universal wheel
- Temperature: Working range: -5 ~ 50℃, storage temperature: -40 ~ 70℃
- Humidity: Relative humidity 0 ~ 90% (40±2℃)
- Altitude: Rated altitude: 4000 m
- Noise: <60dB
- Voltage: Single-phase three-wire system: 220V AC (-20% ~ +30%), frequency: 45 ~ 65Hz
- Withstand Voltage Test:
- Input - Housing: 2200V DC 1min
- Input-Output: 2200V DC 1min
- Output - Housing: 700V DC 1min
- Security: Meets EN610950
- AC Input: GB socket, suitable for 1 ~ 1.5mm2 cable
- DC Output: Instrument 25 mm2 cable quick connect plug (red positive, black negative)
- Warranty : 1 year
- Model Number : MHTFD12
- Power : Electronic
- Heat dissipation : forced air cooling
- Temperature : working range: -5 ~ 50℃ storage temperature: -40 ~ 70℃
- Humidity : relative to humidity0 ~ 90% (40±2℃)
- Altitude : rated altitude: 4000 m
- Noise : 60dB
- Voltage : 220V AC (- 20% ~ +30%)
- Security : meet EN610950
- AC input : 1 ~ 1.5mm2cable
- DC output : 25 mm2Cable quick connect plug (red positive black negative)
