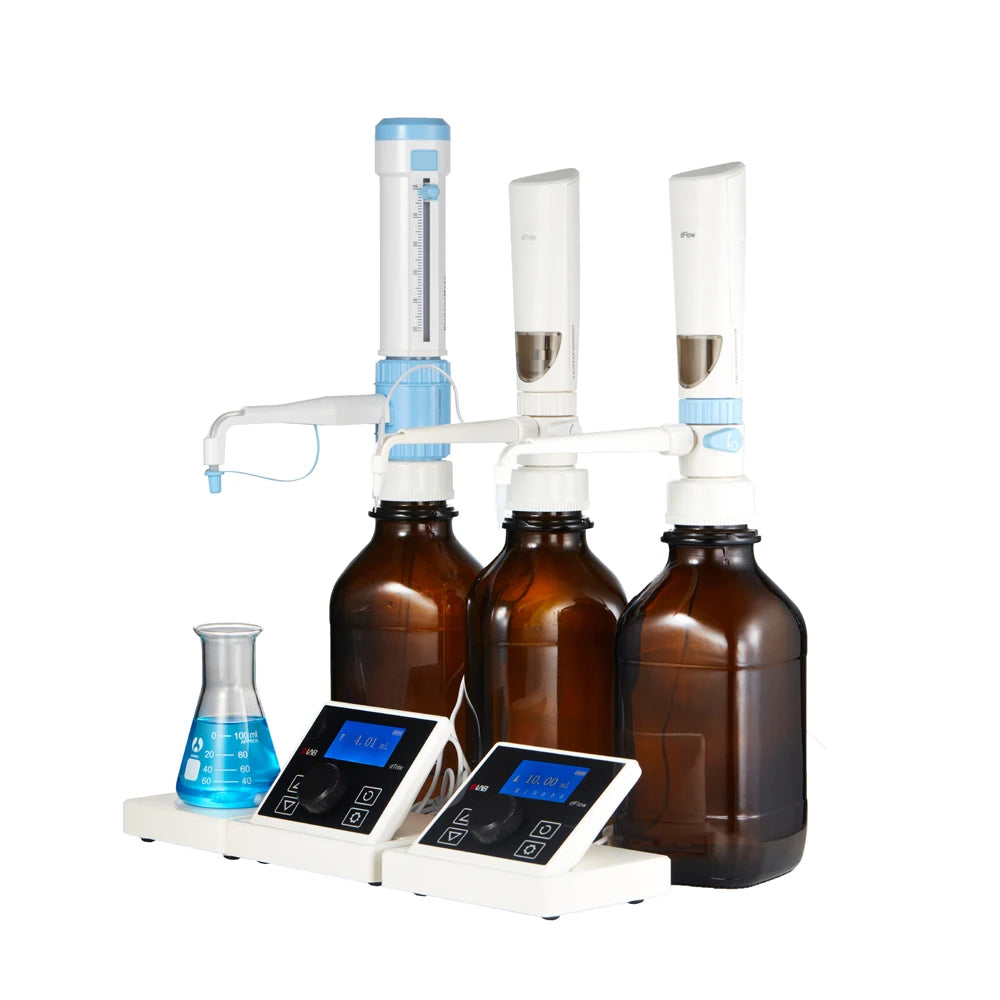

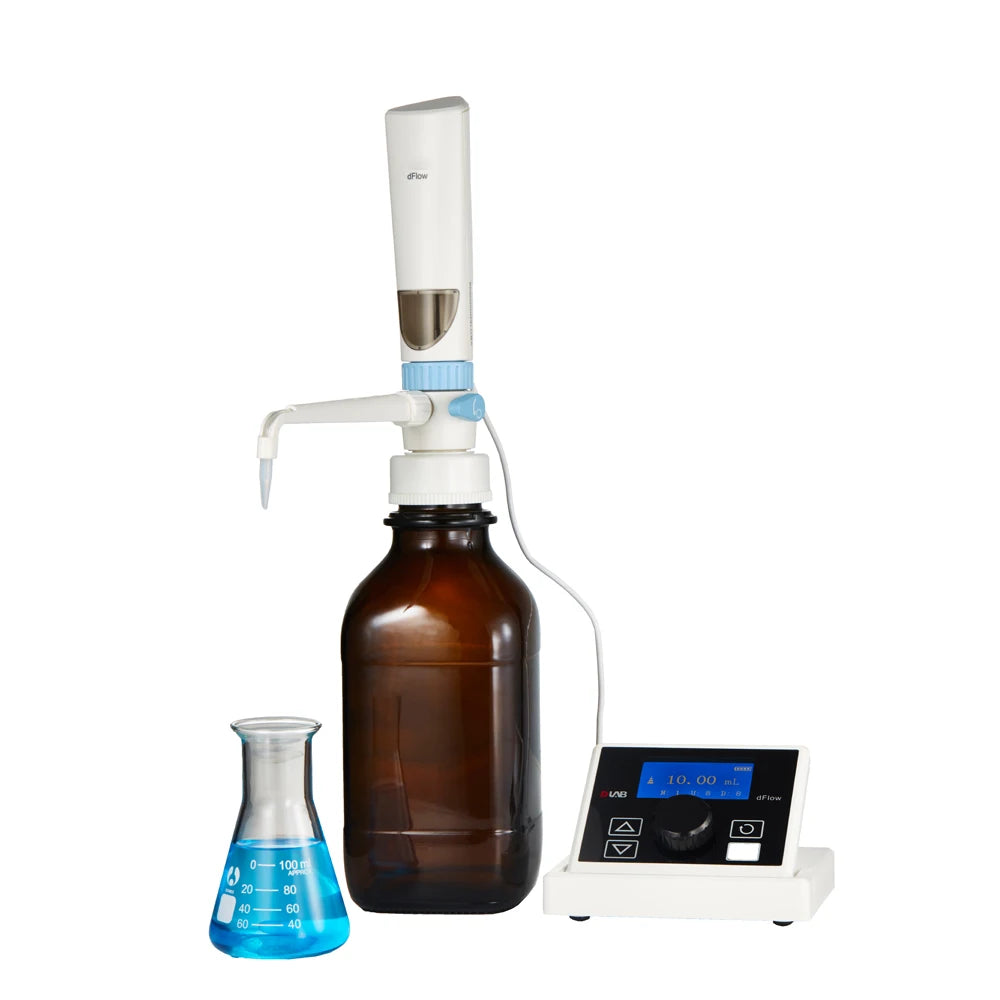

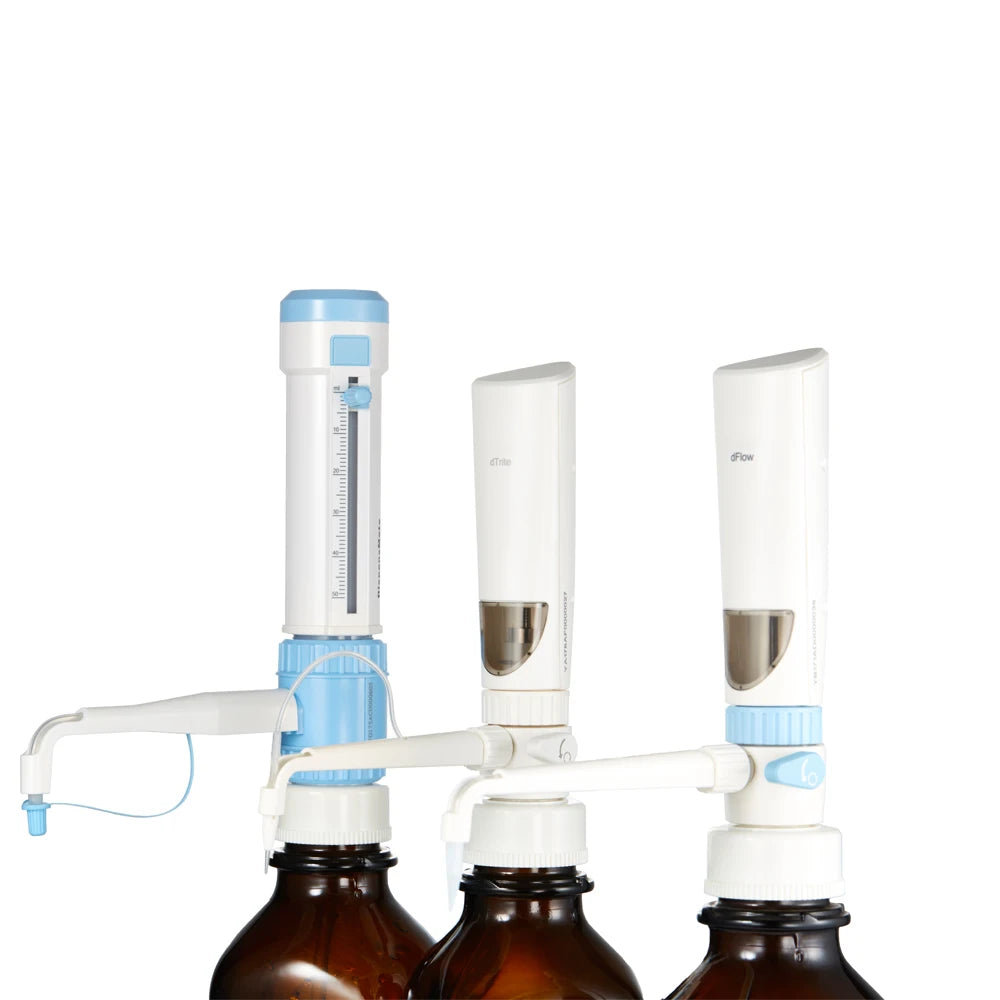

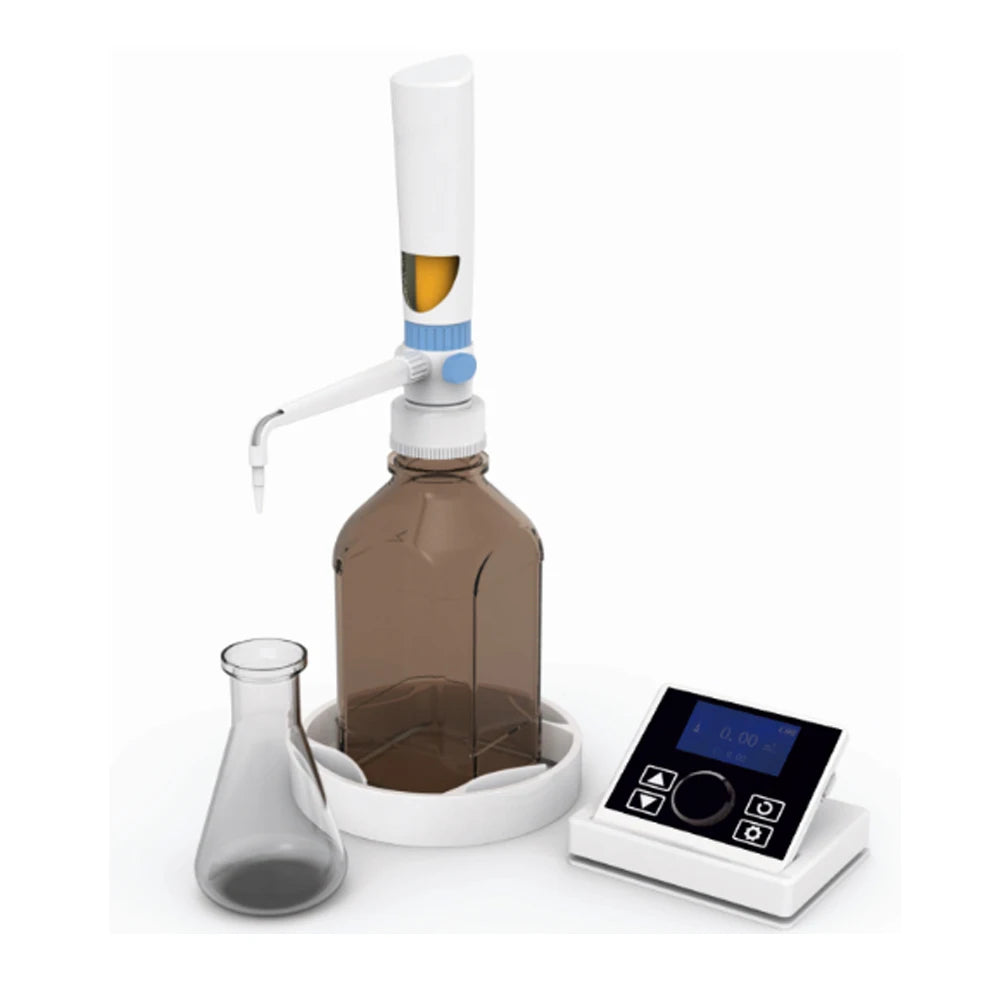

Electronic Bottle-Top Dispenser – High-Accuracy Laboratory Titrator with Digital Control
The Electronic Bottle-Top Dispenser is a precision liquid dispensing instrument designed for high-accuracy laboratory applications. Engineered with advanced digital controls and ergonomic features, it minimizes manual strain and ensures consistent, repeatable results in both small and large volume dispensing tasks.
Key Features:
-
High-Precision Motor: Delivers exceptional accuracy and repeatability across a wide volume range.
-
Ergonomic & Safe: Electronic operation significantly reduces repetitive strain injury (RSI) during long lab sessions.
-
Remote Digital Control Panel: Minimizes manual interference and allows for more precise operation.
-
Dual Dispensing Modes:
-
Continuous Dispensing: For traditional bottle-top use.
-
Stepper Mode: Ideal for precise series dispensing.
-
-
Chemical Resistant Build: Excellent resistance to corrosive reagents for long-term durability.
-
Autoclavable: Fully autoclavable at 121°C for enhanced sterilization and safety.
-
Versatile Compatibility: Includes 5 interchangeable bottle adapters to fit a wide range of reagent bottle sizes.
Technical Specifications:
| Model | Electronic Dispenser |
|---|---|
| Volume Range | 0.1–99.9 mL (Max piston lift: 10mL, Resolution: 100μL) |
| Accuracy (Dispenser Mode) | R = 10mL ±30μL; CV = 10mL ±10μL |
| Accuracy (Stepper Mode) | R = 1mL ±6μL; CV = 1mL ±9μL |
| Operating Temp. | 10°C – 30°C |
| Control Type | External Digital Control Panel |
Applications:
Perfect for titration, sample dilution, and reagent dispensing in pharmaceutical, chemical, biological, and academic laboratories.
