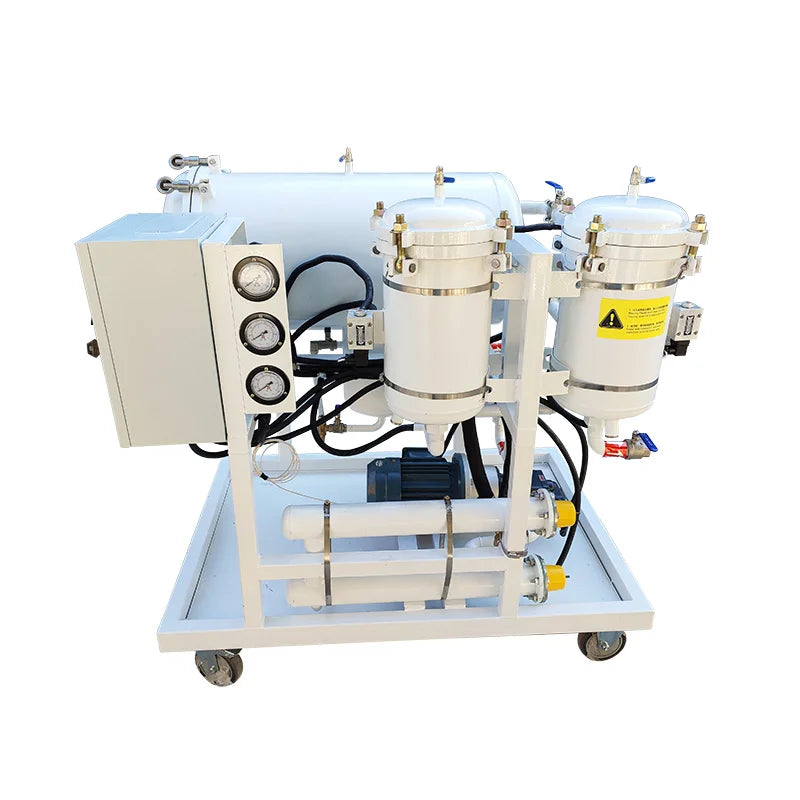

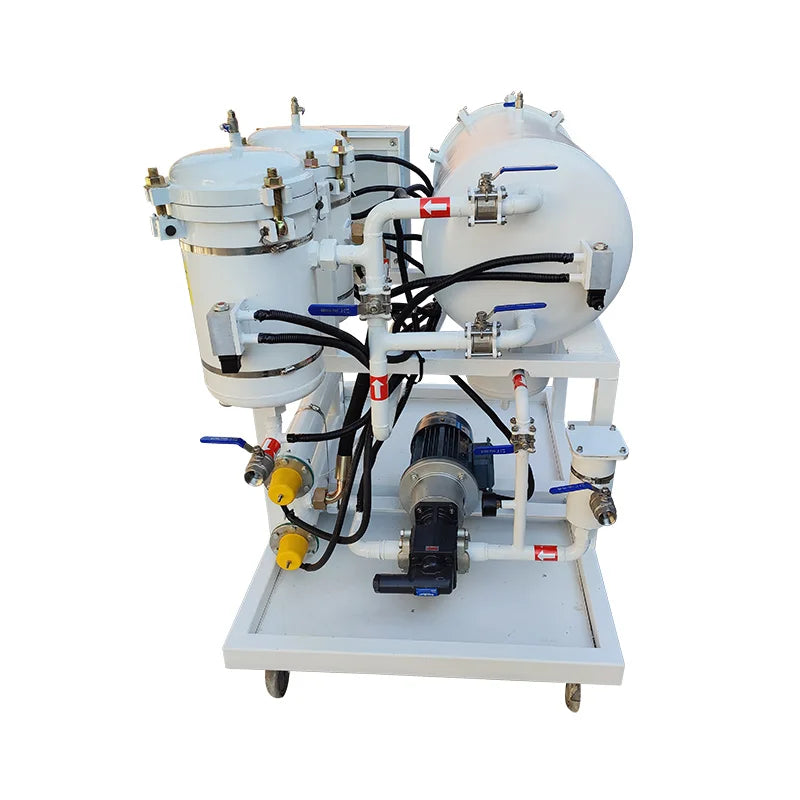

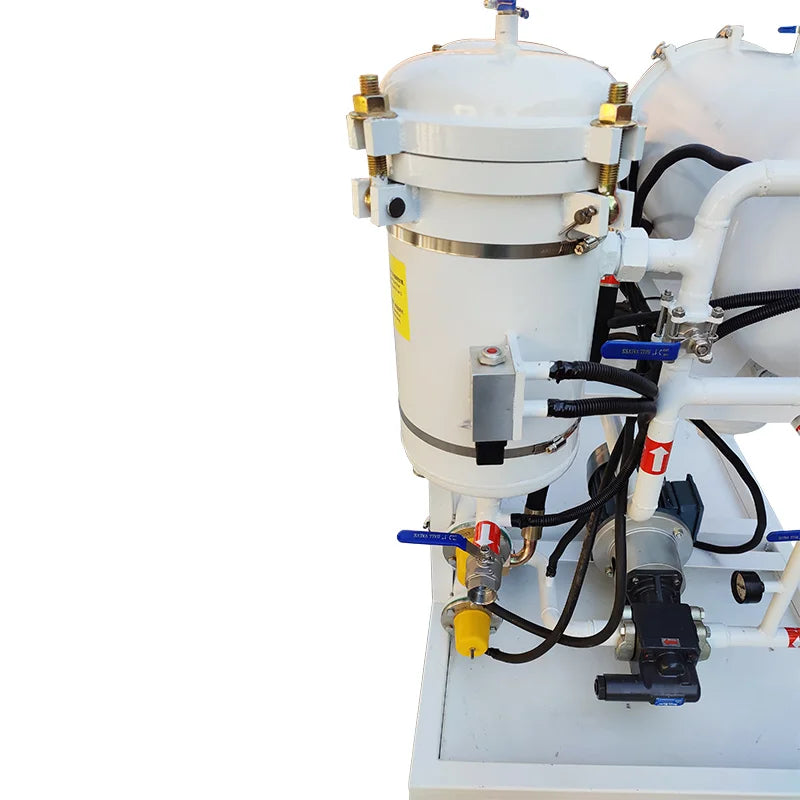

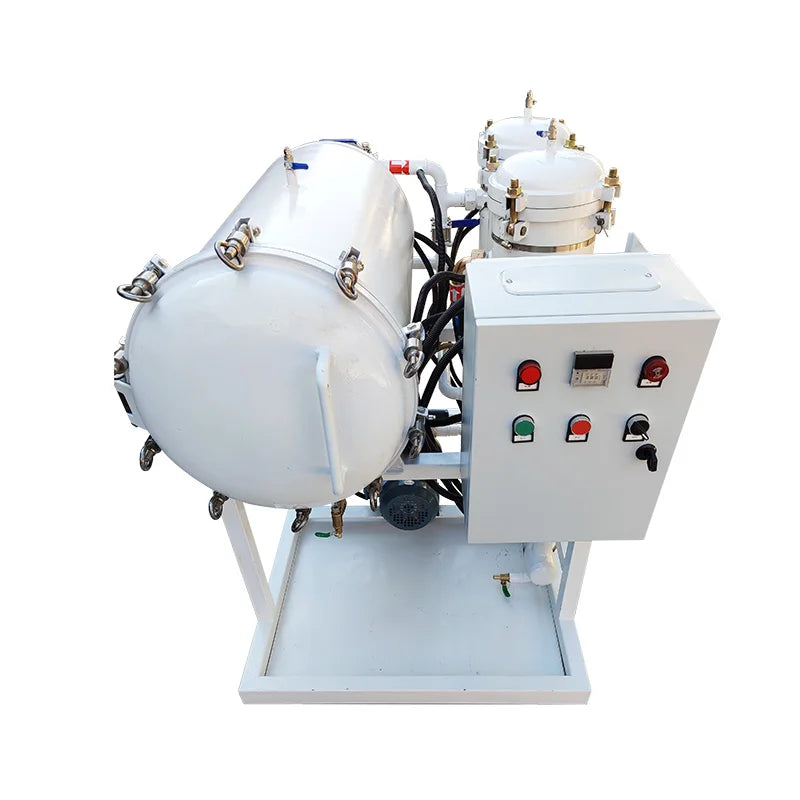

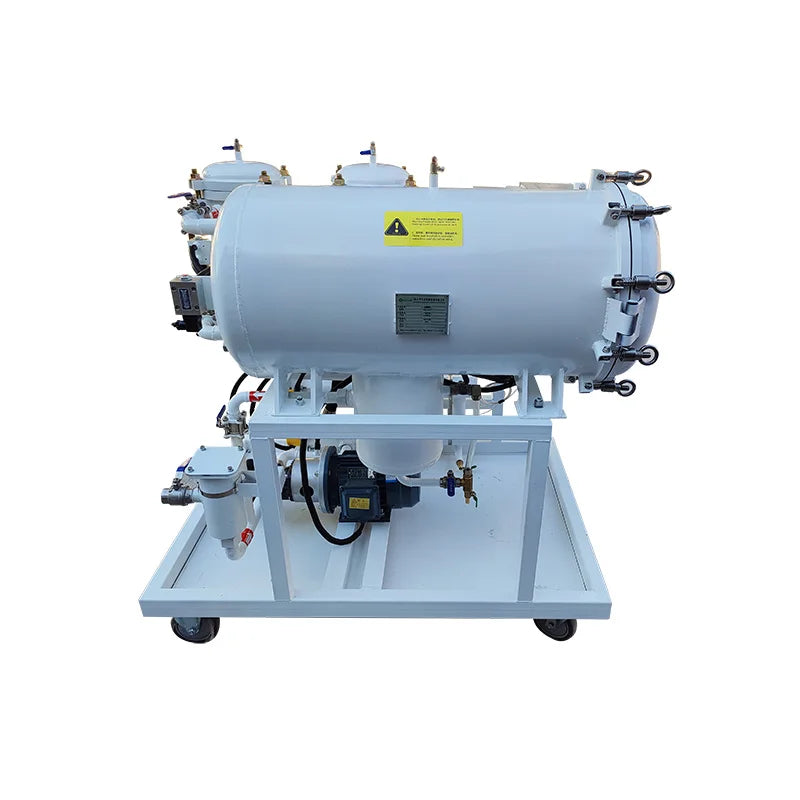

Coalescence Oil Purifier – 150 L/Min Water Removal & Oil Dehydration System
The Coalescence Oil Purifier is a high-efficiency oil filtration system designed to remove water and impurities from various types of industrial oils. Utilizing advanced coalescence and separation technology, this machine combines precision filtration and dehydration in a single system—ensuring cleaner, more reliable oil with minimal maintenance.
It is ideal for treating transformer oil, turbine oil, hydraulic oil, and low-viscosity lubricants, especially in applications where oils contain high water content. Compared to traditional vacuum oil purifiers, this system excels in high-water-content oil purification.
✅ Key Features:
-
Integrated 5-Stage Filtration System:
-
Suction Filter – Protects the pump and extends main filter life.
-
Pre-Filter – Prepares oil for effective water separation.
-
Coalescence Filter – Condenses and separates free water.
-
Separation Filter – Captures tiny water droplets for enhanced dehydration.
-
Fine Filter – Final stage for ultra-clean oil before discharge.
-
-
Smart Design:
-
Equipped with oil level controller, observation window, and return flow adjustment system.
-
Easy monitoring and control of oil level and pressure conditions.
-
-
Wide Application Range:
-
Suitable for transformer oil, turbine oil, hydraulic oil, and light lubricants.
-
Perfect for industrial, power generation, and mechanical maintenance settings.
-
📊 Technical Specifications:
| Parameter | Value |
|---|---|
| Flow Rate | 150 L/min |
| Rated Pressure | 0.6 MPa |
| Pressure Loss | ≤ 0.01 MPa |
| Water Content (After Purification) | ≤ 100 ppm |
| Coarse Filter Precision | 100 µm |
| Pre-Filter Precision | 10 µm / 20 µm |
| Fine Filter Precision | 3 µm / 5 µm |
| Pressure Differential (DP) | 0.2 MPa |
| Operating Temperature | 25–80°C |
| Viscosity Range | 10–120 cSt |
| Voltage | AC 380V, 3 Phase, 50Hz (Adjustable) |
| Motor Power | 0.75–13 kW |
| Total Power | 2.2 kW |
| Dimensions (L×W×H) | 1740 × 960 × 1450 mm |
| Weight | 300 kg |
| Price | $4,220 (EXW) |
| Delivery Time | 20 Days |
For lower flow requirements, we also offer more affordable oil filtration machines with smaller capacities: 25 L/min, 50 L/min, 63 L/min, and 100 L/min.
Pricing is determined by processing capacity—higher flow rates come with higher price tags
