RM-9200 is one of the most popular Auto Refractometers that have earned high reputation in Optical industry. RM-9200 Auto Refractometer is designed with fashionable model and intelligent control. ARM processor is applied in the RM-9200 Auto Refractometer to expedite the system response speed and improve the image resolution. Automatic mist measurement process technology helps make more precise measurements.
Sphere: -20~ 20D (VD=12mm, 0.12 or 0.25D Steps)
Cylinder: 0.00~ -10.00D (0.12/0.25D step)
Axis: 1D-180D (1D step)
Vertex Distance: 0mm, 12mm, 13.75mm, 15mm
Puiple Distance: 30~85mm
Features:
More fashion model, more intelligent control;
Use the ARM processor and the latest domestic image processing, the system is fast and image is clear.Ā
Japan mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment, more precise measurements.
Light rack with integral casting, CNC machining, measuring system is more stable, good consistency.
Data transmission with computerized vision tester, improved efficiency of online.Ā
Motorized chinrest, automatic tracing focus (Y-AXIS direction)
Auto detachment printerĀ
Auto tracking optical system
5.7 inches tillable color LCD
Date transmission with computerized vision tester, improved efficiency of online

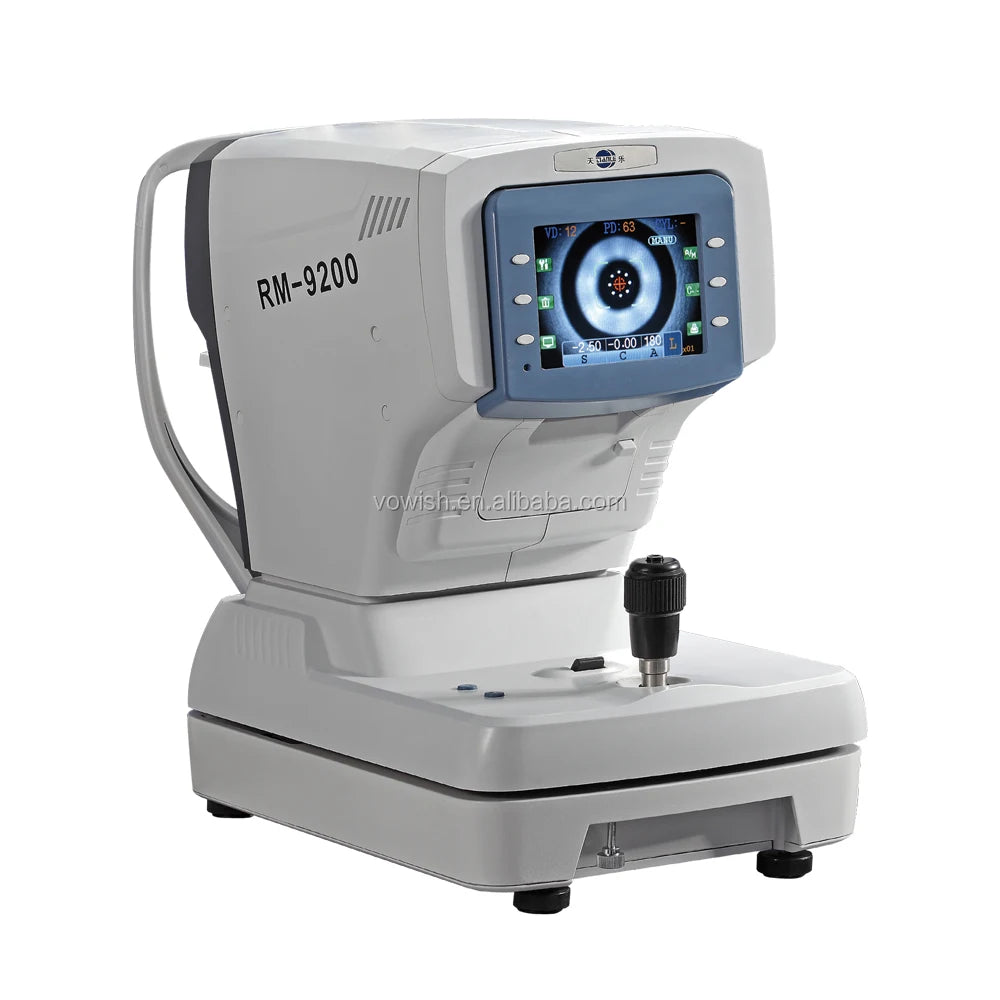

RM-9200 Auto Refractometer Pictures:
Ā
| Refractive measurement | Vertex Distance | 0,12,13.75,15mm |
| Sphere | -20~ 20D (0.12/0.25D step) | |
| Cylinder | 0.00~ -10.00D (0.12/0.25D step) | |
| Axis | 1D-180D (1D step) | |
| Pupil Distance | 30~85mm | |
| Min. Pupil diameter measurable | 2.0mm | |
| Target | Automatic fogging target | |
| Hardware specification | Monitor | 5.7 inch Color LCD |
| Printer | Fast thermal printer | |
| Power Saving Function | OFF, 5/15 mins (Selectable) | |
| Power supply | AC 110~240V, 50/60HZ, 50W | |
| Dimensions/weight | 288 (W) * 500(D)*480 (H)mm/ 14.5kg |
- Warranty : 16 Month, 16 month
- Vertex Distance : 0.0, 12.0, 13.75 ,15.0 mm
- Pupil Distance : 30~85 mm
- Monitor : 5.7 inch Color LCD
- Axis : 1Ā°~180Ā°(1Ā°step)
- Corneal diameter : 2.0~12.00mm
- Power supply : AC110~220 V,50/60HZ
