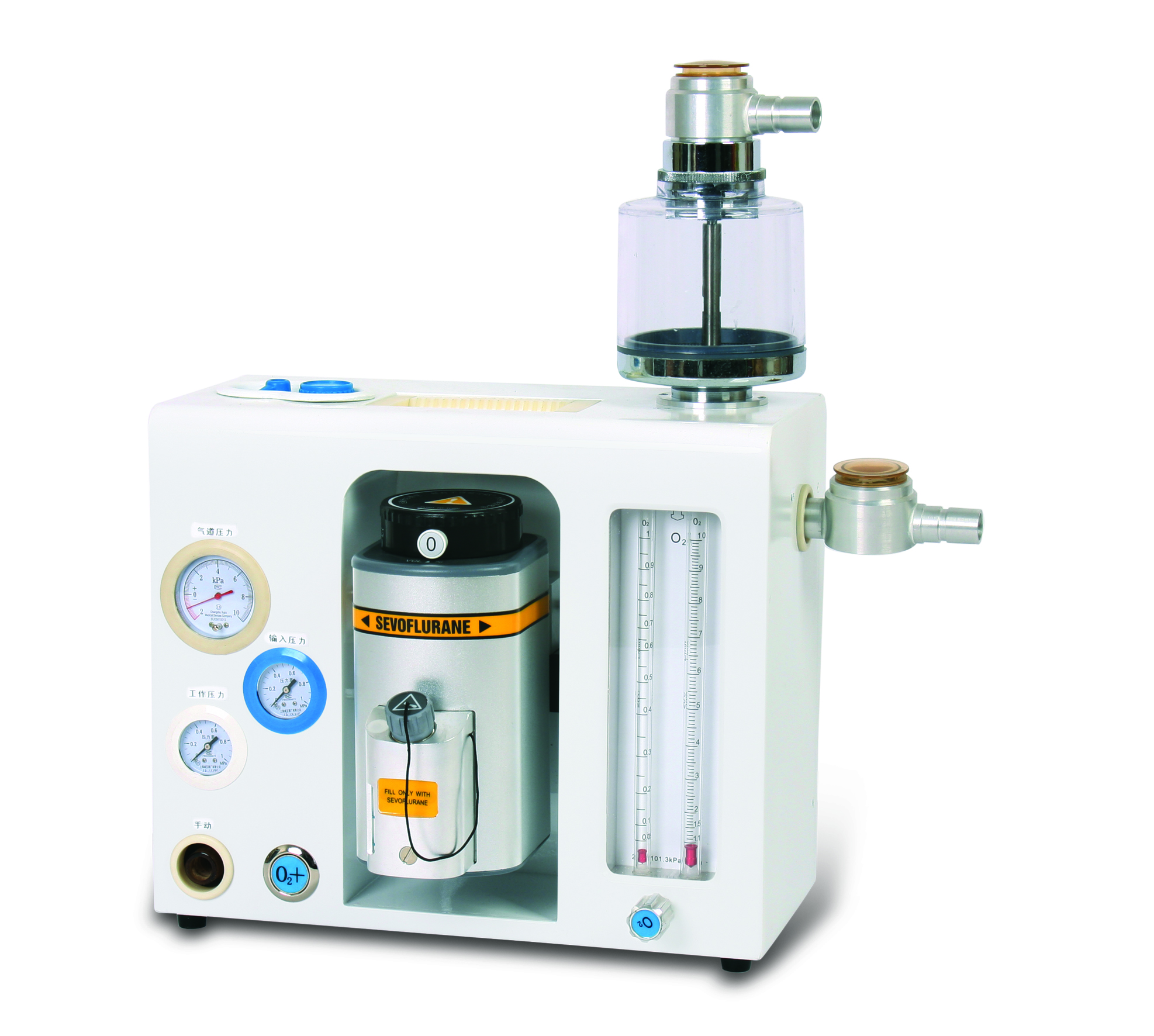

Portable Veterinary Anesthesia Machine
Medical Anesthesia Machine
1、The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate.
2、Reliable pneumatic transmission system
3、Economic and proper configuration of technologies, optional as required by the Customer.
4、Modularized design and upgrading. Upgrading options as required by the Customer.
2、Reliable pneumatic transmission system
3、Economic and proper configuration of technologies, optional as required by the Customer.
4、Modularized design and upgrading. Upgrading options as required by the Customer.
|
Technlcal Parameter of Anesthesla MachIne
|
||||
|
Main body
|
High-strength engineering plastic rack, light, beautiful and corrosion resistant
|
|||
|
Scope of application
|
2KG above animal
|
|||
|
Gas source
|
Oz:0.28-0.6MPa
|
Nz0:0.28-0.6MPa
|
||
|
Flow meter
|
O::0.05-1.0L/min
|
N-O:1.1-10L/min
|
||
|
Flow rate of rapid oxygen supply
|
25-75L/min
|
|||
|
Low oxygen pressure alarm
|
lt will be alarmed when the oxygen pressure <0.2MPa
|
|||
|
vaporizer
|
lt has the fuction of automatic compensation based on pressure, temperature andflow rate.The regulation range of evaporator
concentration is O-5vo1%. |
|||
|
Respiratory circuit
|
working mode: all-close,semi-close, semi-open, APL:≤12.5kPa
|
|||
|
Respiratory Bellows
|
bellows for adults, bellows for children tidal volume range: 0-1500ml
|
|||
