Portable Handheld Wood’s Lamp Dermatoscope – UV Skin Analyzer for Dermatology & Diagnosis
This professional Wood's Lamp Dermatoscope is a compact and portable skin analyzer that uses ultraviolet (UV) light at a peak wavelength of 365nm to aid in diagnosing various skin conditions. Commonly used by dermatologists and skincare professionals, this device is ideal for detecting pigment disorders, bacterial or fungal infections, and porphyrin metabolism issues.
The examination is performed in a dim or dark environment, where the device illuminates the skin. Abnormal fluorescence can indicate the presence of dermatological conditions. This lightweight, handheld analyzer allows for precise, real-time observation and diagnosis, making it suitable for clinical, spa, and home use.

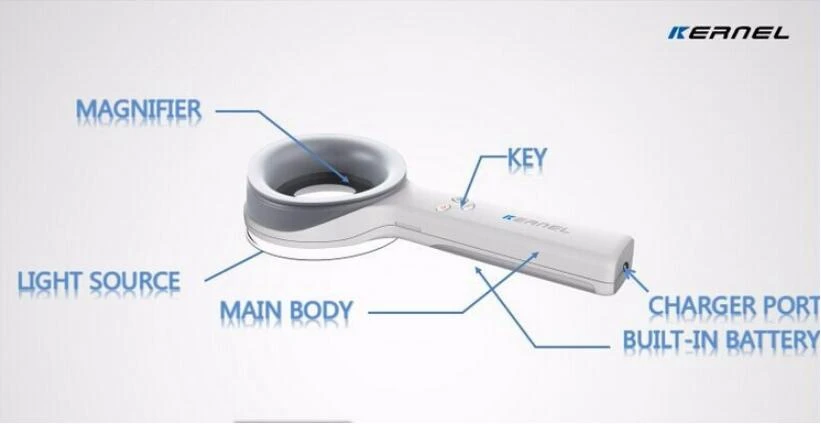

Key Features:
-
✅ Professional UV Light Source: Uses high-intensity UVA LEDs (365nm) to detect pigmentation disorders, bacterial or fungal infections, and metabolic imbalances.
-
✅ Handheld & Portable: Compact and lightweight design for easy handling and transport.
-
✅ User-Friendly Design: Visual window with anti-UV magnifying lens allows safe, clear observation.
-
✅ Wireless Operation: Powered by 4 AA batteries with up to 4 hours of continuous use.
-
✅ Flexible & Precise Examination: Adjustable brightness levels and a visual spotlight diameter of 5cm for focused diagnosis.
-

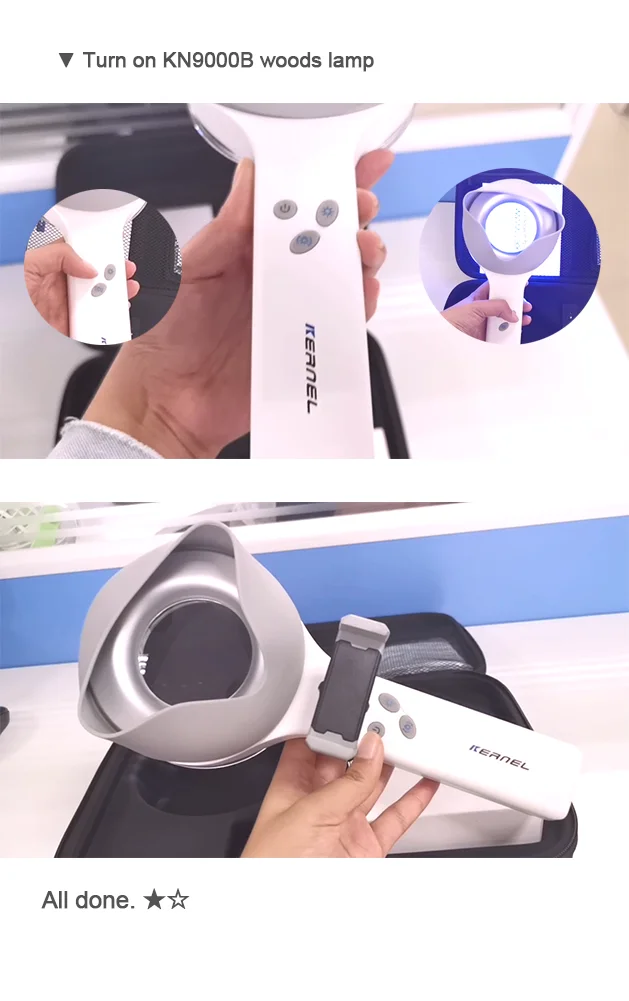

✅ Optional Phone Bracket: Easily capture diagnostic images for documentation, treatment tracking, research, or education.
-
✅ Durable Build: Long-lasting LEDs with over 3,000 hours of life; IP22 water- and dust-resistant casing.
Technical Specifications:
-
UVA Wavelength: 320nm–400nm (Peak: 365nm ±10nm)
-
Light Source: High-intensity SMD UVA LEDs
-
LED Lifetime: ≥3,000 hours
-
Output Intensity: ≥3mW/cm²
-
Power Supply: 4 x AA (1.5V) Batteries
-
Battery Life: Up to 4 hours continuous use
-
Visual Spotlight Diameter: 5cm
-
Observation Window Diameter: Ø65mm ±5mm
-
Water/Dust Resistance: IP22
-
Device Dimensions: 276mm x 138mm x 43mm
Applications:
-
✅ Pigmentation Disorders
-
✅ Psoriasis & Eczema
-
✅ Fungal Infections
-
✅ Vitiligo & Tinea Versicolor
-
✅ Bacterial Infections
-
✅ Cosmetic & Aesthetic Skin Evaluations
This handheld Wood’s lamp is ideal for dermatologists, skincare professionals, estheticians, and educators, delivering clinical-grade skin evaluation with convenience and precision.
